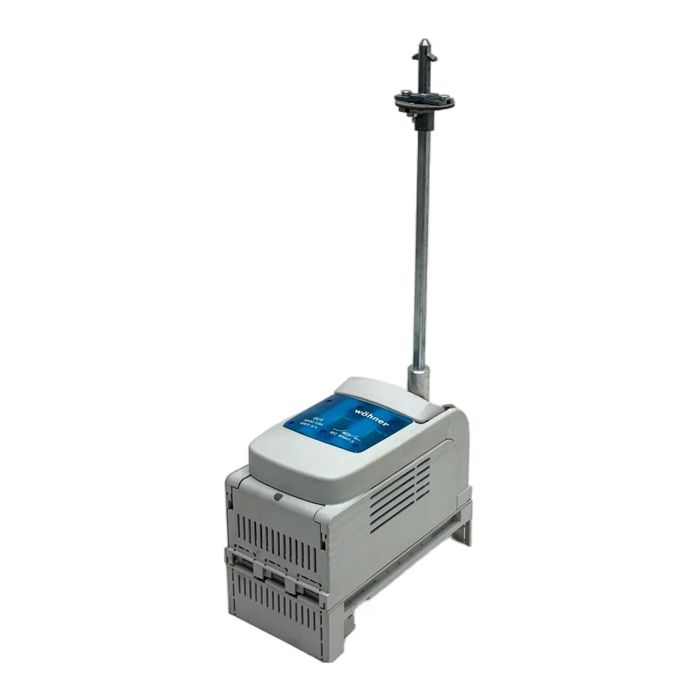

Wohner 125A Fuse Switch Disconnector for NH00 Fuses

Description

The Wohner QCS-NH00, part number 33292, is a high-quality 3-pole fuse switch disconnector designed for NH size 00 fuses. It provides dependable overcurrent protection and a means of safe electrical isolation for industrial applications. This unit is built for direct mounting onto 60mm busbar systems, ensuring a quick, secure, and space-saving installation. Its robust construction guarantees reliable performance and a long service life in demanding electrical distribution panels.

Specifications

• Manufacturer: Wohner
• Type: QCS-NH00
• Part Number: 33292
• Rated Current (Ie): 125 A
• Rated Operational Voltage (Ue): 690V AC
• Number of Poles: 3
• Fuse Size: NH00
• Mounting System: 60mm Busbar
• Frequency: 50/60 Hz
• Standard: IEC 60947-3

Label Info

• QCS-NH00
• IEC 60269-2, NH00 125A
• AC-22A 690V 125A
• AC-23B 690V 125A
• AC-23A 500V 125A

Application

This fuse switch disconnector is ideal for use in industrial power distribution boards, machine control panels, and switchgear assemblies where reliable circuit protection and safe isolation are critical.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned unit over a new one avoids the emission of approximately 36 kg of CO2, a significant saving that contributes to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What size busbar system is this QCS-NH00 designed for?

Answer

This fuse switch disconnector is specifically designed for mounting on standard 60mm busbar systems (center-to-center spacing).

Answer

No, this is the fuse holder and switch assembly only. Compatible NH00 size fuses must be sourced separately according to your application's protection requirements.

Answer

Yes, the design incorporates provisions for padlocking the switch in the open (OFF) position, ensuring compliance with lockout/tagout (LOTO) safety procedures during maintenance.
