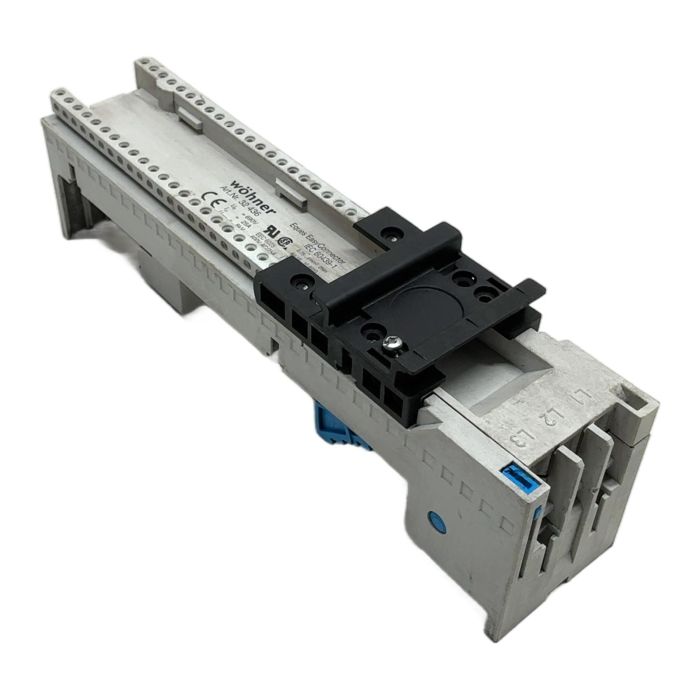

Woehner Eques EasyConnector Busbar Adapter 32 436

Description

The Woehner 32 436 is a high-quality busbar adapter from the Eques EasyConnector series. It is designed to facilitate the quick and secure mounting of standard DIN rail equipment onto 60mm busbar systems. This adapter provides a reliable 3-phase connection and is ideal for building compact and organized control panels and power distribution units.

Specifications

• Manufacturer: Woehner
• Model: Eques EasyConnector
• Article Number: 32 436
• Rated Operational Voltage (Ue): 690V
• Rated Uninterrupted Current (Iu): 25A
• Rated Impulse Withstand Voltage (Uimp): 8kV
• Compatible Busbar System: 60mm
• Terminal Capacity: 0.75 to 6mm2 (No. 18 to 10 AWG)
• Standard: IEC 60439-1

Label Info

• Brand: woehner
• Art.Nr: 32 436

Application

This adapter is perfectly suited for applications in industrial automation, machine building, and electrical distribution panels where devices such as contactors, circuit breakers, and power supplies need to be connected to a main busbar system efficiently and safely.

Country of Origin

Germany

CO2 Impact

By choosing this pre-owned component, you are actively contributing to the circular economy and have helped avoid approximately 10 kg of CO2 emissions that would have been generated from manufacturing a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This adapter is specifically designed for the Woehner 60Classic 60mm busbar system and similar systems with the same dimensions.

The adapter itself is rated for 25A. Therefore, the mounted device's nominal current should not exceed 25A to ensure safe operation.

Yes, while it provides connections for L1, L2, and L3, you can easily use it for single-phase or two-phase applications by connecting only the required phases.
