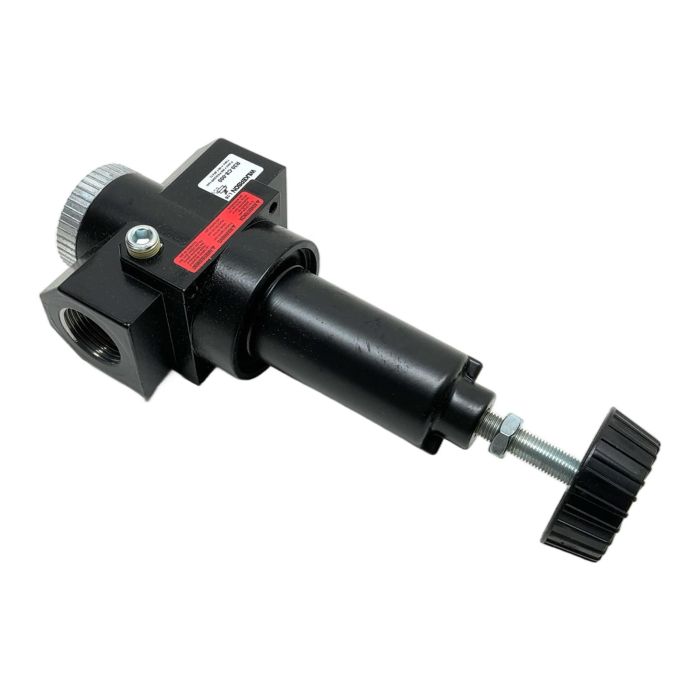

Wilkerson R30-C8-000 Pneumatic Pressure Regulator

Description

The Wilkerson R30-C8-000 is a high-capacity, diaphragm-type pressure regulator designed for industrial pneumatic systems. It ensures a stable downstream air pressure, protecting sensitive equipment and optimizing system performance. This unit features a robust construction for long service life in demanding environments. Its non-rising adjusting knob allows for precise and easy pressure setting.

Specifications

• Manufacturer: Wilkerson
• Model: R30-C8-000
• Part Number: 145480
• Port Size: 1 inch NPT
• Maximum Inlet Pressure: 300 PSIG (20.7 bar)
• Adjusting Pressure Range: 5 to 250 PSIG (0.3 to 17.2 bar)
• Maximum Operating Temperature: 150 deg F (65.6 deg C)
• Body Material: Die-Cast Zinc

Label Info

• Model: R30-C8-000
• P MAX: 300 PSIG (2068 kPa)
• T MAX: 150 F (65.6 C)

Application

Ideal for general purpose industrial applications requiring high flow rates and accurate pressure control. Suitable for use in manufacturing plants, workshops, and automated machinery to regulate the main air supply to tools, cylinders, and other pneumatic components.

Country of Origin

Made in USA.

CO2 Impact

By choosing this pre-owned unit, you are helping to avoid the emission of approximately 15.0 kg of CO2, which is associated with the production of a new component. This saving is equivalent to the CO2 absorbed by a mature tree over a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the recommended filtration level upstream of the R30-C8-000 regulator?

For optimal performance and longevity, it is highly recommended to use a 5-micron particulate filter upstream of the regulator to prevent contamination of the internal diaphragm and valve seat.

Yes, the R30 series regulators can be panel mounted. A panel mount nut is typically required and sold separately. The threaded portion of the adjustment mechanism is designed to pass through a panel cutout.

The Wilkerson R30-C8-000 has a high flow capacity, typically around 400 SCFM (Standard Cubic Feet per Minute) at a set pressure of 90 PSIG with a 100 PSIG inlet pressure. Please refer to the manufacturer's datasheet for detailed flow curves.
