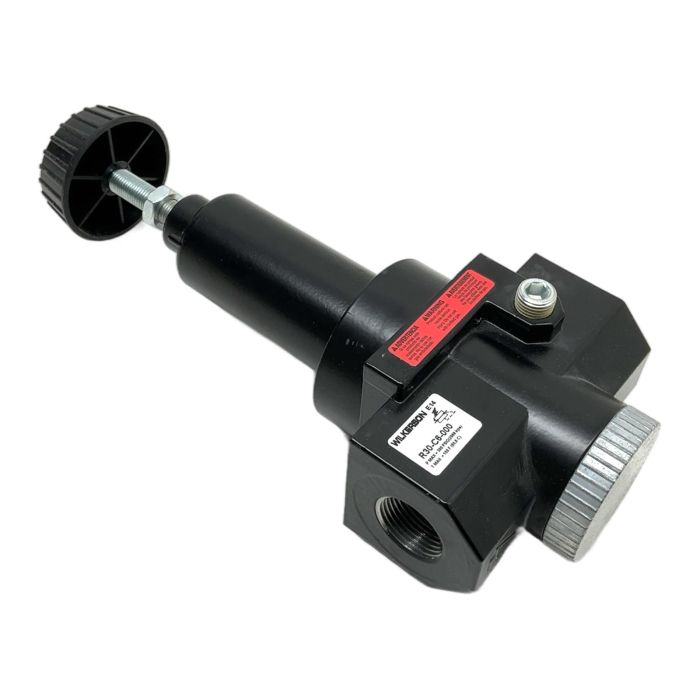

Wilkerson R30-C6-000 Pneumatic Pressure Regulator

Description

The Wilkerson R30-C6-000 is a high-performance, general-purpose regulator designed for precise control in pneumatic systems. It features a large diaphragm and balanced valve design for excellent regulation and response. Manufactured in the USA, this regulator is built for durability and reliability in industrial settings.

Specifications

• Manufacturer: Wilkerson (a Parker Hannifin brand)
• Model: R30-C6-000
• Port Size: 3/4 inch NPT
• Adjusting Range: 0-250 PSIG (0-17.2 bar)
• Maximum Inlet Pressure: 300 PSIG (20.6 bar)
• Maximum Operating Temperature: 150 deg F (65.6 deg C)
• Type: Non-relieving

Label Info

• P MAX = 300 PSIG (20.6 BAR)
• T MAX = 150 F (65.6 C)

Application

Ideal for controlling air pressure to pneumatic tools, cylinders, valves, and other air-powered equipment where high flow and stable pressure are critical.

Country of Origin

Made in USA

CO2 Impact

By choosing this refurbished item, you are helping to avoid 14.4 kg of CO2 emissions, which would have been generated in the production of a new one. This is a sustainable choice for your operations.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A non-relieving regulator does not have a built-in mechanism to bleed off excess downstream pressure. If the downstream pressure increases above the set point (e.g., from an external force on a cylinder), it will remain trapped. This type is used in applications where venting gas to the atmosphere is undesirable or in static pressure applications.

Yes. The body of the R30 regulator typically includes one or more gauge ports, usually plugged from the factory as seen in the images. You can remove the plug and install a standard pressure gauge to monitor the outlet pressure.

For optimal performance, it's recommended to periodically inspect the unit for leaks. Wilkerson offers service kits which typically include diaphragms, seals, and O-rings. The service interval depends heavily on the air quality and cycle frequency of the application.
