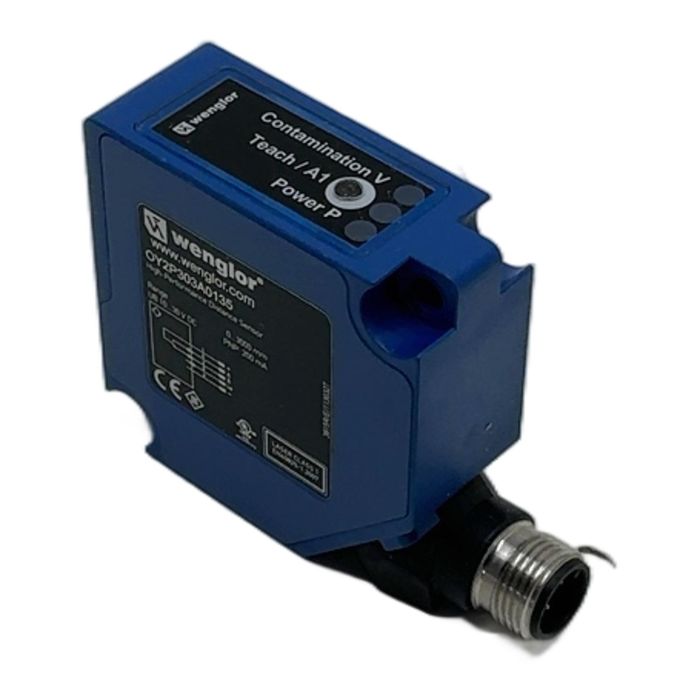

Wenglor OY2P303A0135 High-Performance Distance Sensor

Description

The Wenglor OY2P303A0135 is a highly accurate distance sensor designed for demanding industrial automation tasks. It utilizes a Class 1 red light laser to measure distances up to 3000 mm with exceptional precision. This sensor is equipped with two PNP switching outputs and a configurable analog output (voltage or current), offering flexible integration into various control systems. Its teach-in function simplifies setup, and integrated LEDs provide clear status indication for power, contamination, and output state.

Specifications

• Manufacturer: Wenglor
• Type Number: OY2P303A0135
• Working Range: 300...3000 mm
• Supply Voltage: 18 to 30 V DC
• Switching Outputs: 2x PNP, 200 mA
• Analog Output: Voltage (0-10 V) / Current (4-20 mA)
• Light Source: Laser (Red Light)
• Laser Class: 1 (EN 60825-1)
• Connection: M12 Connector, 8-pin
• Housing Material: Plastic
• Protection Class: IP67

Label Info

• Range: 0...3000 mm
• U: 18...30 V DC
• Ie: PNP 200 mA
• Laser Class 1 Product EN60825-1

Application

This sensor is ideal for applications requiring precise distance measurement and object detection, such as level control in tanks, positioning of robotic arms, loop control in material handling, and quality control for dimensional accuracy.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned component helps reduce industrial waste and saves approximately 3.2 kg of CO2 compared to a new purchase, contributing to a more sustainable production process.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A Class 1 laser is considered eye-safe under all conditions of normal use. This means no special safety precautions or protective eyewear are required during installation and operation, simplifying its integration into a production environment.

The analog output can be configured for either voltage (0-10V) or current (4-20mA) mode. This is typically done via the sensor's teach-in buttons or through an IO-Link interface if the sensor is connected to a compatible master. Refer to the official Wenglor manual for the specific teach-in procedure.

The 'Contamination V' LED serves as a warning indicator. It illuminates when the sensor's lens is dirty or when the signal quality is degraded, alerting the operator that maintenance may be required to ensure accurate and reliable measurements.
