Laser Distance Sensor Time of Flight, Optical Data, Working Range 0 ... 3,000 mm, Setting Range 200 ... 3,000 mm, Switching Hysteresis < 15 mm, Light Source Laser (red), Wavelength 660 nm, Service Life (T = +25 °C) 100,000 h, Laser Class (EN 60825-1) 1, Beam Divergence < 2 mrad, Max. Ambient Light 10,000 Lux, Light Spot Diameter see Table 1, Electrical Data, Supply Voltage 10 ... 30 V DC, Current Consumption (Ub = 24 V) < 50 mA, Switching Frequency 1,000 Hz, Response Time 0.5 ms, Temperature Drift (-10 °C < Tu < 50 °C) < 1 %, Temperature Drift (Tu < -10 °C, Tu > 50 °C) < 2.5 %, Temperature Range -40 ... 60 °C, Number of Switching Outputs 2, Switching Output Voltage Drop < 2.5 V, PNP Switching Output/Switching Current 200 mA, Short Circuit Protection yes, Reverse Polarity Protection yes, Overload Protection yes, Protection Class III, FDA Accession Number 0710891-003, Mechanical Data, Setting Method Teach-In, Housing Material Plastic, ABS, Plastic, PC, Optic Cover Plastic, PMMA, Degree of Protection IP68, Connection M12 × 1; 4/5-pin, Weight 37 g, Safety-relevant Data, MTTFd (EN ISO 13849-1) 771.39 a, Output, PNP NC, PNP NO yes, Adjustable parameters, Circuit NC/NO, NC+NO, NO

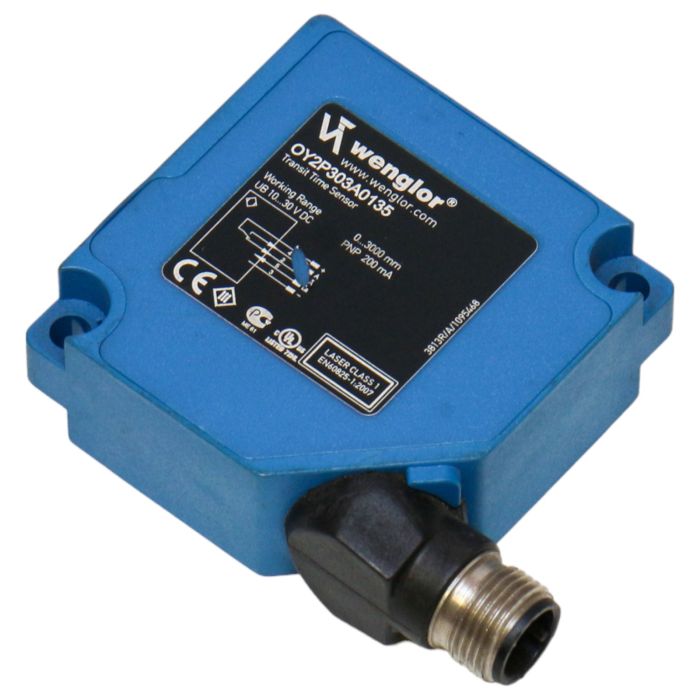

• Laser Distance Sensor Time of Flight
• Optical Data
• Working Range: 0 ... 3,000 mm
• Setting Range: 200 ... 3,000 mm
• Switching Hysteresis: < 15 mm
• Light Source: Laser (red)
• Wavelength: 660 nm
• Service Life (T = +25 °C): 100,000 h
• Laser Class (EN 60825-1): 1
• Beam Divergence: < 2 mrad
• Max. Ambient Light: 10,000 Lux
• Electrical Data
• Supply Voltage: 10 ... 30 V DC
• Current Consumption (Ub = 24 V): < 50 mA
• Switching Frequency: 1,000 Hz
• Response Time: 0.5 ms
• Temperature Drift (-10 °C < Tu < 50 °C): < 1 %
• Temperature Drift (Tu < -10 °C, Tu > 50 °C): < 2.5 %
• Temperature Range: -40 ... 60 °C
• Number of Switching Outputs: 2
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• FDA Accession Number: 0710891-003
• Mechanical Data
• Setting Method: Teach-In
• Housing Material: Plastic, ABS, Plastic, PC
• Optic Cover: Plastic, PMMA
• Degree of Protection: IP68
• Connection: M12 × 1; 4/5-pin
• Weight: 37 g
• Safety-relevant Data
• MTTFd (EN ISO 13849-1): 771.39 a
• Output PNP NC, PNP NO: yes
• Adjustable parameters: Circuit NC/NO, NC+NO, NO

Wenglor is a high-quality industrial sensor used for various applications such as automation, robotics, and machine vision systems. This reliable sensor can be purchased at PLC2Day for your industrial needs.
