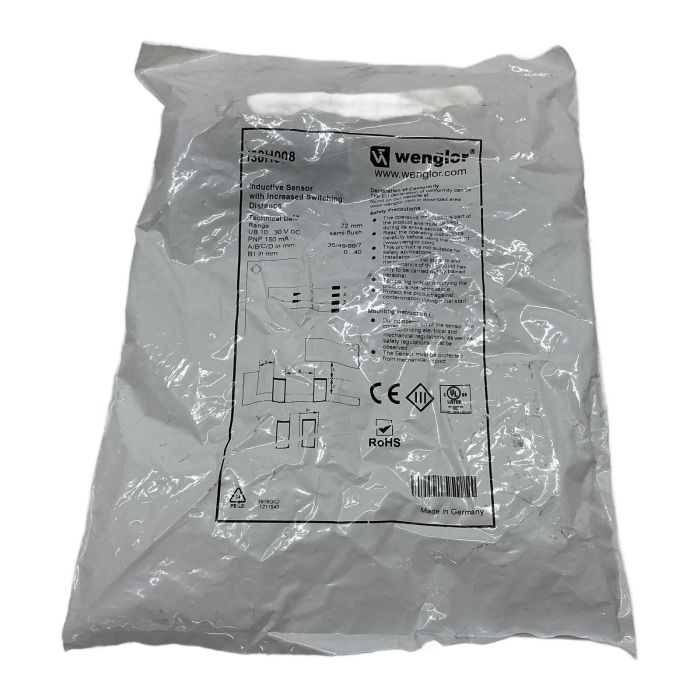

Wenglor IB30UNN8 Inductive Proximity Sensor

Description

The Wenglor IB30UNN8 is a high-performance inductive sensor designed for reliable detection of metallic objects. It features an increased switching distance of 22 mm and a robust M30 nickel-plated brass housing, making it suitable for demanding industrial environments. This sensor operates on a 10 to 30V DC supply with a PNP normally open output. Its non-flush mounting capability allows for a greater detection range.

Specifications

• Manufacturer: Wenglor
• Type: IB30UNN8
• Switching Distance (Sn): 22 mm
• Housing Diameter: M30
• Mounting: Non-flush
• Output Type: PNP, Normally Open (NO)
• Operating Voltage: 10 to 30V DC
• Switching Current (Ia): 150 mA
• Temperature Range: -35 to +80 deg C
• Protection Class: IP67
• Housing Material: CuZn, nickel-plated

Label Info

• Range: 22 mm
• V: 10...30V DC
• Ia: 150 mA
• PNP

Application

Ideal for use in factory automation, material handling, packaging machinery, and assembly lines where non-contact detection of metal parts is required.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this Wenglor sensor, you help avoid the emission of approximately 6.0 kg of CO2 compared to a new purchase. This saving is equivalent to the emissions from driving a standard car for 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does 'non-flush mounting' mean for the IB30UNN8?

Non-flush mounting means the sensor's sensing face must protrude from the surrounding metal mounting surface. This design prevents the mounting material from interfering with the sensor's magnetic field, allowing it to achieve its maximum specified switching distance of 22 mm.

Is the PNP output of this sensor a Normally Open (NO) or Normally Closed (NC) configuration?

The Wenglor IB30UNN8 has a PNP Normally Open (NO) output. This means the output is switched ON (conducts current) when a metal target is within the detection range and OFF when the target is removed.

What type of connector does the IB30UNN8 use, and is a cable included?

This sensor model typically uses a standard M12 connector. Please check the specific product listing or images to confirm if a connecting cable is included with this unit, as they are often sold separately.
