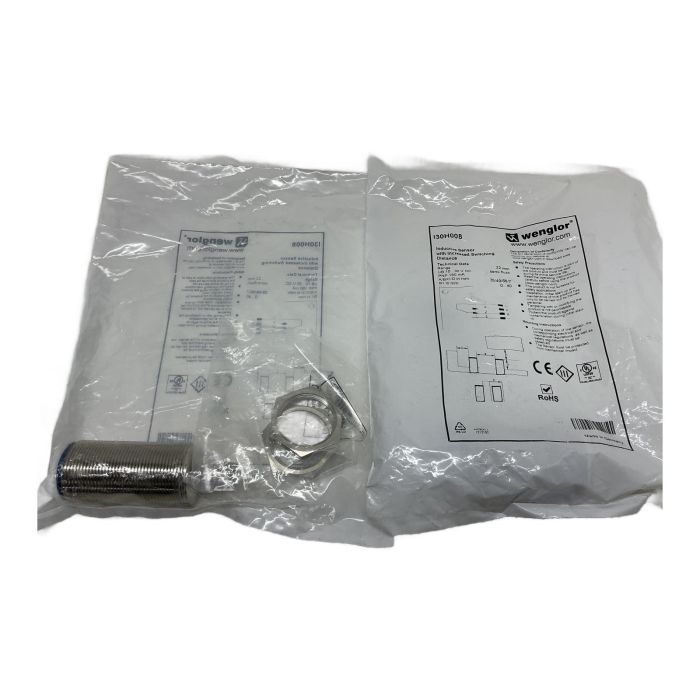

Wenglor I30H008 Inductive Proximity Sensor

Description

The Wenglor I30H008 is a high-performance inductive sensor with an increased switching distance, designed for reliable object detection in industrial environments. Its M30 threaded metal housing allows for easy and secure mounting. This sensor is ideal for applications in factory automation, packaging, and material handling where long-range detection is critical.

Specifications

• Manufacturer: Wenglor
• Type Number: I30H008
• Sensing Range: 22 mm
• Output Type: PNP, Normally Open (NO)
• Operating Voltage: 10 to 30 V DC
• Max Output Current: 150 mA
• Housing: M30 x 1.5, Chrome-plated brass
• Mounting: Semi-flush
• Connection: M12 connector, 4-pin

Label Info

• Range: 22 mm
• Ub: 10...30 V DC
• PNP 150 mA

Application

This sensor is commonly used for position detection of metallic parts on conveyor systems, presence detection in assembly lines, and end-of-travel sensing in automated machinery.

Country of Origin

Made in Germany.

CO2 Impact

Opting for a reconditioned I30H008 sensor prevents the emission of approximately 4.8 kg of CO2, which is comparable to the savings from not driving a standard car for 24 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What does "semi-flush" mounting mean for the I30H008 sensor?

Semi-flush (or quasi-flush) mounting means the sensor can be partially embedded into a metal surface without significantly affecting its sensing distance. For the I30H008, the datasheet specifies the exact mounting conditions, allowing for a more compact installation than a purely non-flush sensor while offering a better range than a flush-mountable one. Always refer to the manufacturer's mounting guidelines for optimal performance.

Is the PNP output of this sensor a Normally Open (NO) or Normally Closed (NC) type?

The Wenglor I30H008 features a PNP Normally Open (NO) switching output. This means the output is switched ON (conducts current) when a metal object is detected within its 22mm sensing range and is OFF when no object is present.

Can this sensor be used to detect non-ferrous metals like aluminum or brass?

Yes, the I30H008 can detect non-ferrous metals, but its switching distance will be reduced. Inductive sensors work best with ferrous metals like steel. For other metals, a correction factor applies. For example, the Wenglor datasheet specifies a correction factor of approximately 0.34 for aluminum, meaning the effective sensing distance for an aluminum target would be around 7.48mm.
