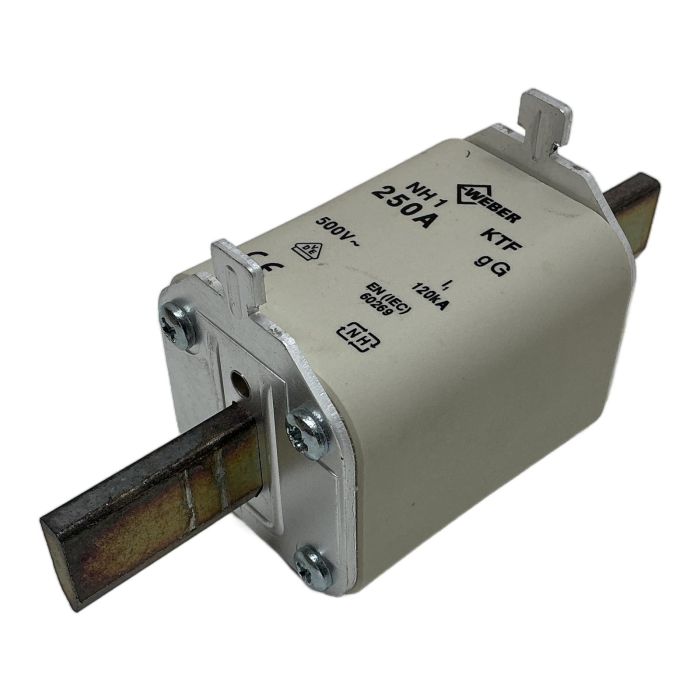

Weber NH Fuse 250A 500V NH 1 KTF/gG

Description

This is a high-quality NH fuse from Weber, size 1, designed for reliable protection in industrial applications. With a rated current of 250A and a voltage rating of 500V AC, it is ideal for safeguarding cables, lines, and equipment against overcurrent and short-circuit faults. The gG characteristic makes it suitable for general-purpose use.

Specifications

• Rated Current: 250 A
• Rated Voltage: 500V AC
• Fuse Size: NH1
• Characteristic: gG (General purpose line protection)
• Breaking Capacity: 120 kA
• Standard: Conforms to EN/IEC 60269, VDE 0636

Label Info

• Manufacturer: Weber
• Model: NH 1 KTF/gG
• EAN: 7611919012973

Application

Designed for use in industrial switchgear, distribution boards, and fuse disconnectors to protect main and sub-circuits against the effects of overloads and short circuits.

Country of Origin

This product is manufactured in Switzerland.

CO2 Impact

Opting for this component helps avoid 12.0 kg of CO2 emissions, which is comparable to the emissions from driving a car for 60 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'gG' characteristic mean for this Weber fuse?

The 'gG' characteristic indicates a general-purpose fuse for full-range breaking capacity. It is designed to protect against both overload (slow-blow) and short-circuit (fast-acting) conditions, making it suitable for protecting cables, lines, and general equipment.

No, 'gG' fuses are not typically recommended for protecting sensitive semiconductor devices like thyristors or IGBTs. For such applications, you should use a fuse with an 'aR' or 'gR' characteristic, which are specifically designed for ultra-rapid protection of semiconductors.

This specific model does not have a built-in trip indicator. To use a visual or electrical indication system, you must select a fuse version that includes an indicator pin or use a fuse base that has its own monitoring capabilities compatible with standard NH fuses.
