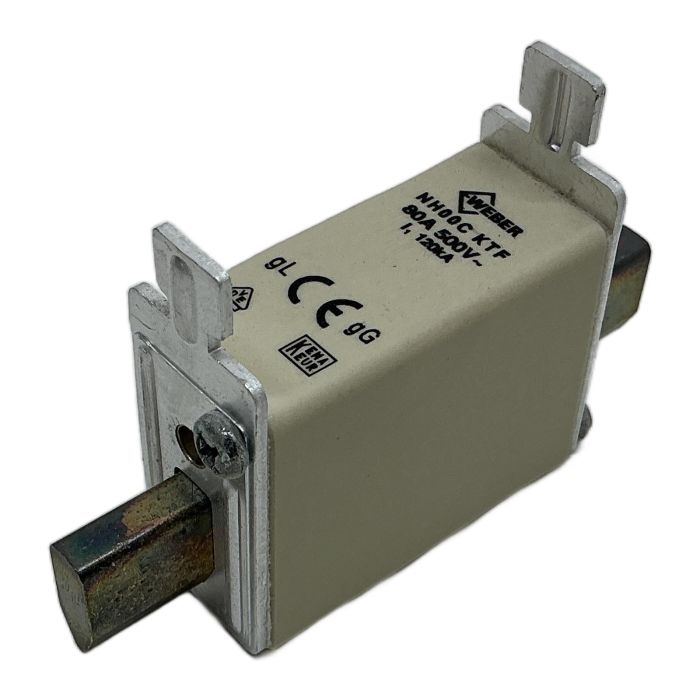

Weber 80A NH00C Fuse Link

Description

This is an NH fuse link, size 00C, manufactured by Weber. It has a nominal current rating of 80A and a voltage rating of 500V AC. The gG characteristic makes it suitable for general-purpose applications, primarily for the protection of cables and lines against overloads and short circuits.

Specifications

• Manufacturer: Weber
• Type: NH Fuse Link
• Model: NH 00 C KTF/gG
• Part Number: A 1500580
• Current Rating: 80A
• Voltage Rating: 500V AC
• Size: NH00C
• Characteristic: gG (also compatible with gL applications)
• Breaking Capacity: 100kA

Label Info

• NH00C KTF
• 80A 500V~
• I1 100kA
• gL - gG

Application

Designed for use in industrial low-voltage distribution boards, switchgear, and control panels to protect equipment from fault currents. Ideal for protecting cables, power lines, and other electrical apparatus.

Country of Origin

This product is manufactured in Germany.

CO2 Impact

Opting for this refurbished fuse link saves approximately 1.8 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from charging a smartphone over 200 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

gG and gL are largely interchangeable. 'gL' was the older VDE standard designation, while 'gG' is the current IEC standard for general-purpose line protection fuses. A fuse marked with both, like this one, complies with both standards.

Yes, the 'C' in NH00C refers to a compact body design, but it maintains the standard blade contacts and dimensions to fit in any standard NH size 00 fuse base or switch-disconnector.

As indicated on the label (I1 100kA), this fuse has a high-rupturing or breaking capacity of 100,000 Amperes (100kA). This means it can safely interrupt very high short-circuit currents without damage.
