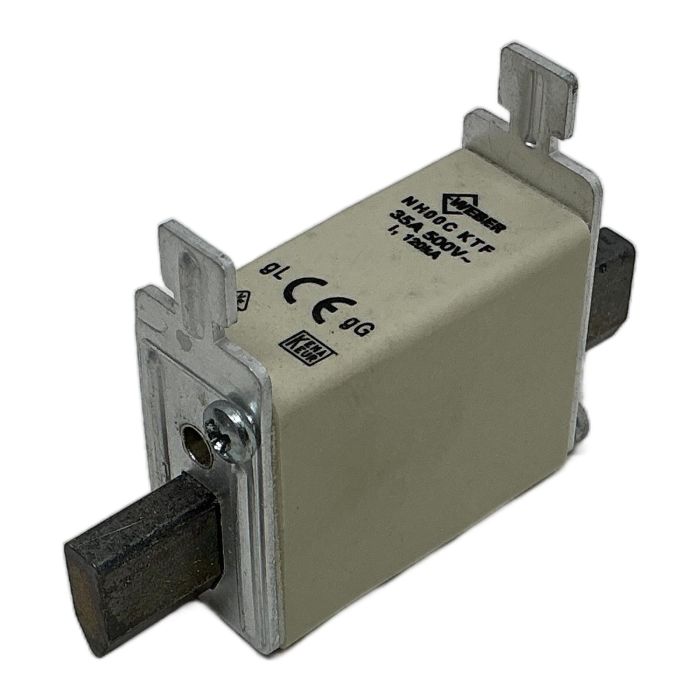

Weber NH 00 C KTF 35A Fuse Link

Description

This is a Weber NH fuse, size 00, designed for reliable circuit protection in industrial environments. It is rated for a nominal current of 35A and a maximum voltage of 500V AC. With a gL/gG characteristic, it is optimized for general purpose applications, providing excellent protection for cables and lines against overloads and short circuits.

Specifications

• Manufacturer: Weber
• Type: NH Fuse Link
• Model: NH 00 C KTF 35 A
• Part Number: IW 1500535
• Rated Current: 35 A
• Rated Voltage: 500 V AC
• Size: NH00
• Characteristic: gL/gG
• Breaking Capacity: 120 kA

Label Info

• Standards: VDE 0636, IEC 269

Application

This fuse is commonly used in industrial low-voltage distribution boards, switchgear assemblies, motor control centers, and as a primary protection for various electrical equipment to prevent damage from overcurrent events.

Country of Origin

This product was manufactured in Switzerland.

CO2 Impact

By purchasing this reused component, you are helping to avoid the production of a new one, saving an estimated 6.0 kg of CO2. This saving is comparable to driving a car for 30 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The gL/gG characteristic indicates a general purpose fuse. It is designed to protect against both overload (slow-blow characteristic) and short-circuit (fast-acting characteristic) conditions, making it suitable for protecting cables, lines, and general equipment.

Yes. The 500V AC rating is the maximum voltage the fuse can safely interrupt. It will function perfectly in any AC system with a voltage at or below 500V, such as 400V or 230V systems.

This fuse has a high breaking capacity, typically 120 kA (kiloamperes). This means it can safely interrupt a short-circuit current of up to 120,000 amperes without rupturing, ensuring maximum safety for the installation and personnel.
