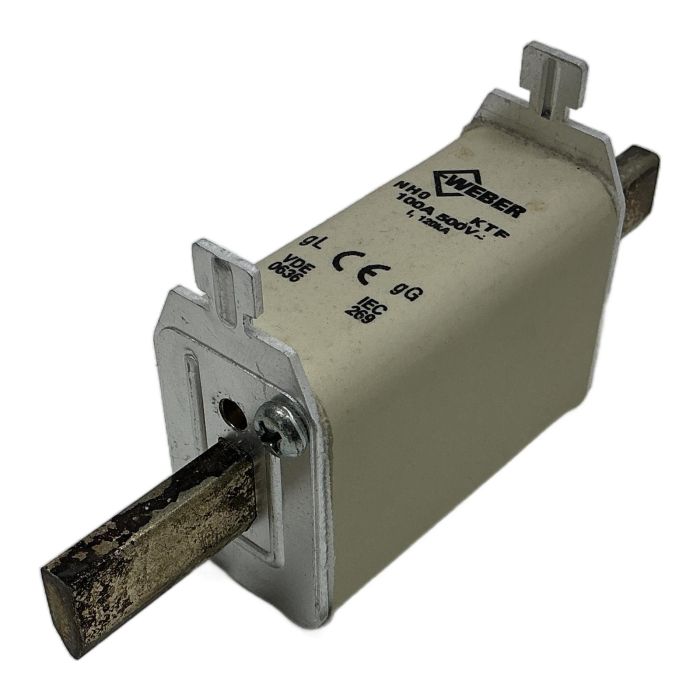

Weber NH0 KTF 100A 500V AC Fuse

Description

This is a Weber NH-Sicherungseinsatz (NH fuse-link) of size NH0, designed for reliable circuit protection in industrial applications. With a rated current of 100A and a voltage of 500V AC, it provides robust defense against both overloads and short-circuits. The gL/gG characteristic makes it a versatile, full-range fuse suitable for general line and equipment protection.

Specifications

• Manufacturer: Weber
• Type: NH 0 KTF 100 A
• Part Number: IW 1505100
• Rated Current: 100 A
• Rated Voltage: 500V AC
• Fuse Size: NH0
• Characteristic: gL/gG (General Line Protection)
• Breaking Capacity: 120 kA
• Standards: VDE 0636, IEC 269

Application

This fuse is commonly used in industrial distribution boards, switchgear, and control panels to protect cables, power lines, and other electrical equipment from the damaging effects of overcurrents.

CO2 Impact

Opting for a refurbished or new-old-stock component like this Weber fuse prevents the emission of approximately 3.6 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from a 18 km car journey.

Availability

This item is in stock and ready for immediate dispatch. While the Weber brand is now part of Mersen, these original parts offer the same quality and performance. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between gL and gG characteristics?

Historically, gL stood for cable and line protection, while gG was for general purpose applications. According to the current IEC standard, the gG class has replaced the gL class, and they are now considered equivalent for most applications. They both provide full-range protection against overload and short-circuit currents.

While some AC fuses can be used in DC circuits, their breaking capacity and voltage rating are significantly de-rated. It is critical to consult the manufacturer's datasheet for specific DC application guidelines. Using it outside of its specified AC rating without verification is not recommended.

An NH fuse should be replaced after it has interrupted a fault (blown). Most NH fuses have a visible trip indicator on the top metal plate that pops up or changes color (e.g., to red) when the fuse has operated. There is no need for preventative replacement unless the fuse body shows signs of physical damage like cracks or charring.
