Voith Hydraulic Subplate for NG10 Valves

Description

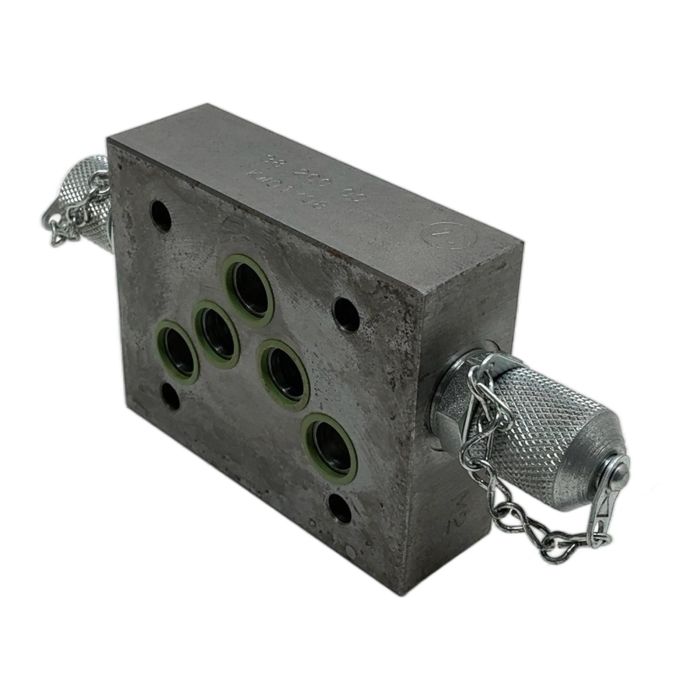

This is a high-quality, used hydraulic subplate or connection plate, model 38 200 00, from Voith. It is engineered to serve as a mounting base for NG10 (CETOP 5) standard directional control valves. Constructed from solid steel, this plate ensures a stable and leak-free connection point within a hydraulic circuit. It includes two side-mounted quick couplings with protective dust caps, allowing for fast and easy integration. This component is ideal for system maintenance, repair, or building new hydraulic power units.

Specifications

• Manufacturer: Voith
• Part Number: 38 200 00
• Valve Interface: NG10 / CETOP 5
• Material: Steel
• Connections: 5-port pattern with side quick-couplings

Label Info

• Part Number: 38 200 00
• Date Code: KW 01/08 (Week 1, 2008)

Application

Designed for the secure mounting of NG10 directional control valves in various industrial hydraulic applications, including machine tools, presses, and mobile equipment.

Country of Origin

Germany

CO2 Impact

Reusing this subplate saves an estimated 8.0 kg of CO2 compared to producing a new one. This is equivalent to the emissions from driving a car for 40 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This subplate conforms to the NG10 (Nominal Size 10) standard, also known as CETOP 5. It is designed for mounting compatible directional control valves.

While not explicitly marked, subplates for NG10 valves are typically designed for high pressures common in industrial hydraulics, often up to 315 bar (4500 PSI) or more. Always verify compatibility with your specific system's pressure requirements.

Yes, the images show two side-mounted quick couplings with protective caps are included as part of this assembly, facilitating rapid connection and disconnection from the main hydraulic lines.
