Vickers Modular Flow Control Valve NG6 315 bar

Description

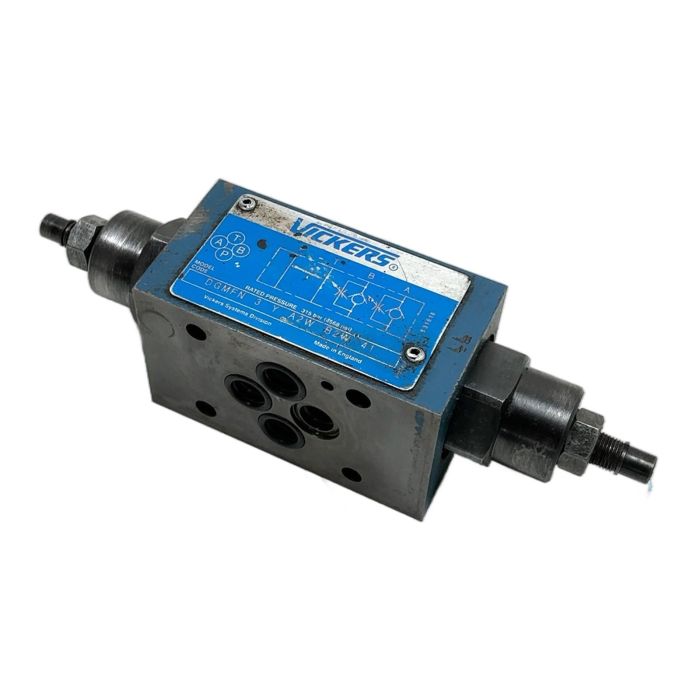

The Vickers DGMFN-3-Y-A2W-B2W-41 is a robust modular flow control valve designed for precise regulation in hydraulic systems. This dual throttle check valve allows for adjustable control of flow rates in both the A and B ports, with an integrated check valve for reverse free flow. Its NG6 (CETOP 3) mounting interface makes it easy to integrate into standard hydraulic valve stacks. Built to last, this valve operates reliably at pressures up to 315 bar (4568 psi).

Specifications

• Manufacturer: Vickers (Eaton)
• Model: DGMFN-3-Y-A2W-B2W-41
• Type: Modular Flow Control Valve
• Interface: NG6 / CETOP 3
• Maximum Operating Pressure: 315 bar (4568 psi)
• Function: Dual throttle check valve (A and B ports)
• Adjustment: Screw with locknut

Label Info

• Model Code: DGMFN 3 Y A2W B2W 41
• Rated Pressure: 315 bar (4568 psi)

Application

This valve is ideal for applications requiring independent speed control of hydraulic actuators, such as cylinders or motors, in both directions of movement. It is commonly used in industrial machinery, presses, machine tools, and material handling equipment.

Country of Origin

Made in England.

CO2 Impact

By purchasing this pre-owned valve, you are contributing to a circular economy and preventing approximately 6.0 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

This is an obsolete item, making it a critical spare part for maintaining existing machinery. Limited stock available. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'A2W' and 'B2W' codes specify the function at ports A and B respectively. They indicate a 2-way adjustable throttle (flow control) with an integrated check valve ('W') that allows free flow in the reverse direction. This allows for meter-in or meter-out control depending on the valve's orientation.

Yes, its design with dual throttle check valves makes it versatile. By controlling the flow entering the actuator (meter-in) or the flow leaving the actuator (meter-out), you can precisely manage the speed of a hydraulic cylinder or motor.

For optimal performance and longevity of Vickers spool-type valves, it is generally recommended to maintain a fluid cleanliness level of ISO 4406 code 20/18/15 or better. Using proper filtration will prevent premature wear and sticking of internal components.
