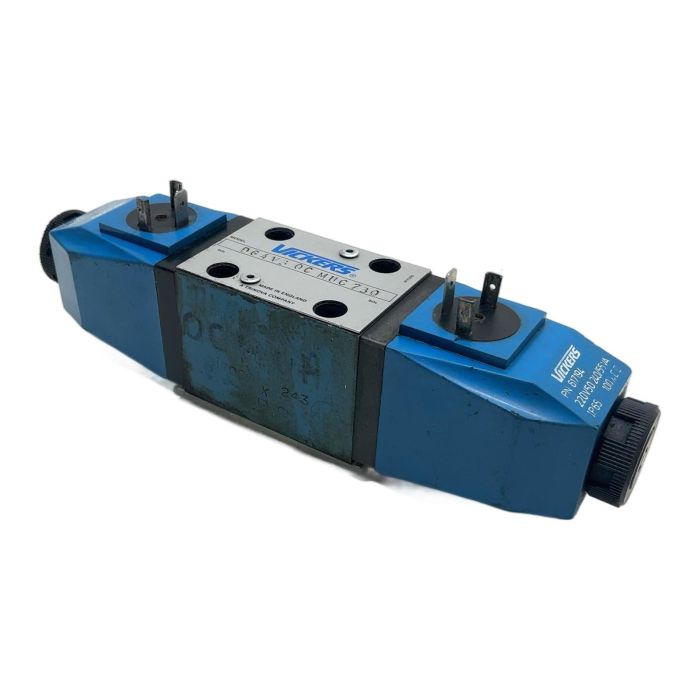

Vickers DG4V 3 0C MUC 730 Solenoid Directional Valve

Description

The Vickers DG4V 3 0C MUC 730 is a high-performance, direct-operated solenoid directional control valve. It is designed for industrial hydraulic applications requiring reliable and precise flow control. This double solenoid model features a spring-centered, closed-center spool, ensuring that all ports are blocked when de-energized, holding the actuator in a fixed position. Its standard NG6 (D03) mounting pattern allows for easy integration into new or existing hydraulic circuits.

Specifications

• Manufacturer: Vickers (now part of Eaton)
• Model: DG4V 3 0C MUC 730
• Type: Solenoid Operated Directional Control Valve
• Interface: CETOP 3 / NG6 / D03
• Spool Type: 0C (Closed-Center)
• Actuation: Double Solenoid, Spring Centered
• Coil Voltage: 240V AC 50Hz / 220V AC 60Hz
• Coil Power: 55 VA
• Protection Class: IP65

Label Info

• Main Label Model: DG4V 3 0C MUC 730
• Main Label Part Number: 617330
• Solenoid Coil Part Number: 617194

Application

This valve is commonly used in machine tools, presses, injection molding machines, and various other industrial automation systems to control the direction of hydraulic cylinders and motors.

Country of Origin

Made in England.

CO2 Impact

Opting for this reconditioned valve saves approximately 15.0 kg of CO2 compared to manufacturing a new one. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the '0C' in the model number DG4V 3 0C MUC 730 signify?
The '0C' designates the spool type. In this case, it is a closed-center, spring-centered spool. This means that when both solenoids are de-energized, the valve returns to its center position, and all ports (P, T, A, and B) are blocked, holding the actuator in a fixed position.

Can I use a different voltage coil with this valve body?
Yes, the DG4V-3 valve body is compatible with a range of Vickers/Eaton coils. This specific unit is equipped with 240VAC coils (Part Number 617194). If your application requires a different voltage (e.g., 24VDC or 120VAC), you can replace the existing coils with the correct ones for this valve series, ensuring they are properly installed and torqued.

What type of hydraulic fluid is recommended for the Vickers DG4V-3 series?
The DG4V-3 series valves are designed to work with standard mineral oil-based hydraulic fluids (like HL, HLP types). They are also compatible with certain synthetic fluids, but it is crucial to check the seal compatibility. For optimal performance and longevity, ensure the fluid is kept clean to ISO 4406 cleanliness level 20/18/15 or better.
