Vickers NG10 Directional Control Valve

Description

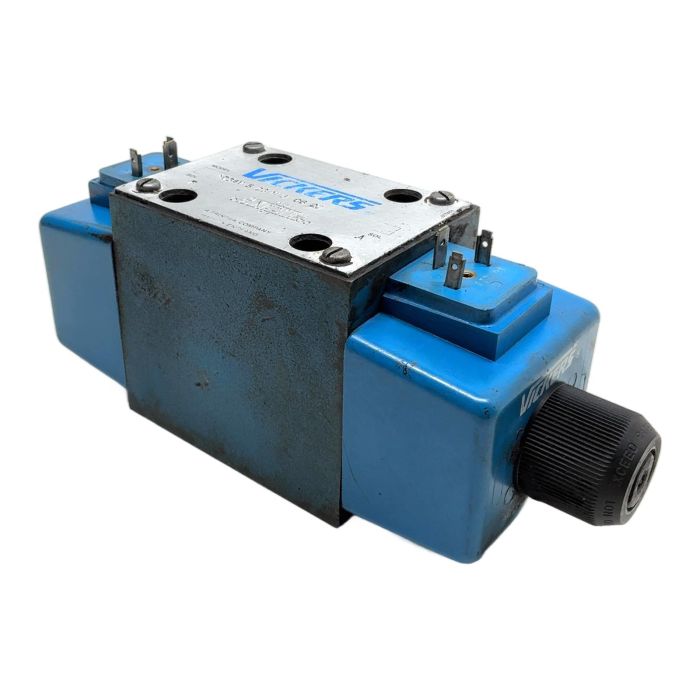

This is a Vickers DG4V-5-2C-M-U-C6-20, a double solenoid operated directional control valve. It is designed for subplate or manifold mounting and adheres to the NG10 / CETOP 5 / D05 interface standard. This valve provides precise control over the flow of hydraulic fluid, making it a critical component in industrial hydraulic systems. Manufactured in England, this valve is known for its robustness and long service life.

Specifications

• Manufacturer: Vickers (now part of Eaton)
• Model: DG4V-5-2C-M-U-C6-20
• Valve Type: Directional Control Spool Valve
• Actuation: Double Solenoid
• Size: NG10 (CETOP 5, D05)
• Spool Configuration: 3-Position, Spring Centered
• Center Condition (Spool Type '2C'): Pressure to Tank, A & B Ports Blocked
• Mounting: Gasket Mount

Label Info

• Model: DG4V 5 2C M U C6 20
• SOL A / SOL B
• Hydraulic Symbol: 4-Way, 3-Position, P-T center

Application

This valve is suitable for a wide range of hydraulic applications, including machine tools, presses, injection molding machines, and material handling equipment, where reliable directional control is essential.

Country of Origin

Made in England.

CO2 Impact

Opting for this pre-owned valve saves approximately 29.0 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial operation.

Availability

This item is a used, tested component ready for dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the '2C' spool type in this DG4V-5 valve?

The '2C' spool is a spring-centered, three-position configuration. In its neutral (de-energized) state, it blocks the work ports (A and B) and connects the pressure port (P) directly to the tank port (T). This is useful for unloading the hydraulic pump, reducing heat and energy consumption when no actuation is required.

Yes, this valve is typically compatible with standard mineral-based hydraulic oils (HL, HLP). For use with synthetic fluids, water glycols, or phosphate esters, you must consult the Eaton/Vickers datasheet to ensure seal compatibility, as special seals (e.g., Viton) may be required.

For a steel subplate, the recommended tightening torque for the M6 mounting bolts is typically between 9 and 11 Nm (Newton-meters). Applying torque evenly in a cross pattern is crucial to prevent distorting the valve body, which could cause the spool to bind.
