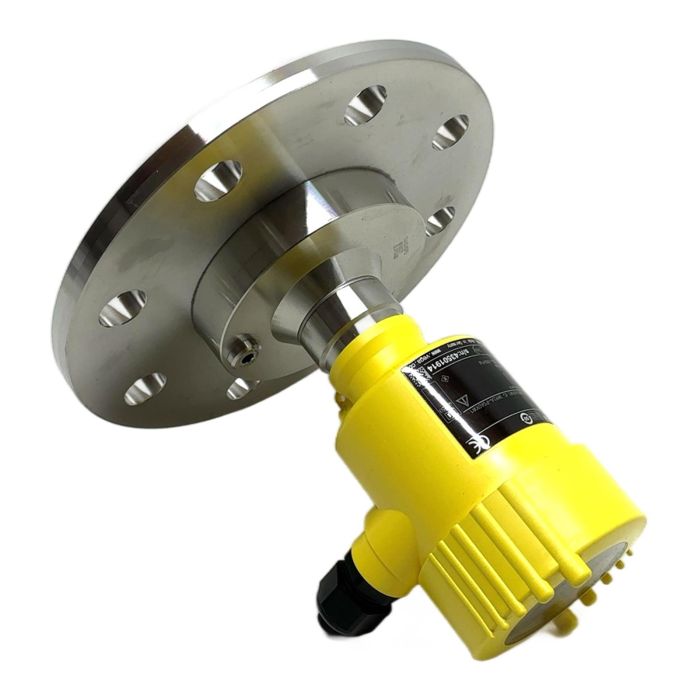

VEGA VEGAPULS 69 Radar Level Sensor

Description

The VEGAPULS 69 is a state-of-the-art sensor for continuous level measurement of bulk solids under various process conditions. Operating at a high frequency of 80 GHz, it provides excellent signal focusing, enabling reliable measurements in tall, narrow silos, even with internal installations or heavy dust generation. This particular unit comes equipped with a DN100 PN16 flange and features a 4-20mA HART two-wire output for seamless integration into existing control systems.

Specifications

• Manufacturer: VEGA
• Model: VEGAPULS 69
• Order Code: PS69.AXCFAAHXKMAXX
• Technology: 80 GHz Radar
• Measuring Range: max. 120 m
• Process Connection: Flange DN100 PN16
• Process Pressure: -1 to +3 bar (-100 to +300 kPa)
• Wetted Parts Material: PEEK, FKM, 316L (1.4404)
• Output: 4-20mA HART two-wire
• Protection Rating: IP66/IP67
• Display: Integrated PLICSCOM display/adjustment module

Label Info

• Manufacturer: VEGA Grieshaber KG
• Model: VEGAPULS 69
• Serial Number: 43501914
• Year of Manufacture: 2019

Application

Ideal for level measurement in silos, bunkers, and stockpiles containing bulk solids such as plastic granules, cement, grain, or wood chips. Its high-frequency technology makes it particularly suitable for applications with low-dielectric materials or challenging environments with dust and buildup.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid approximately 114.0 kg of CO2 emissions associated with the production of a new unit. This is a significant contribution to sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 80 GHz frequency allows for a much narrower radar beam (as small as 3 degrees). This excellent signal focusing prevents interference from internal structures like agitators or buildup on the silo wall, resulting in higher measurement reliability compared to lower-frequency sensors.

Yes, this model is equipped with the PLICSCOM display and adjustment module. This allows for full configuration, commissioning, and diagnostics directly on the device using the four buttons and graphical display, without needing a separate HART communicator or PC software.

Absolutely. The encapsulated antenna is made of PEEK, which offers excellent resistance to abrasion and chemical attack. The 316L (1.4404) stainless steel flange is a robust, corrosion-resistant material standard in the process industry, making the combination ideal for handling abrasive materials like sand or cement.
