VOSS Male Stud Elbow Fitting 10L 1/4 NPT

Description

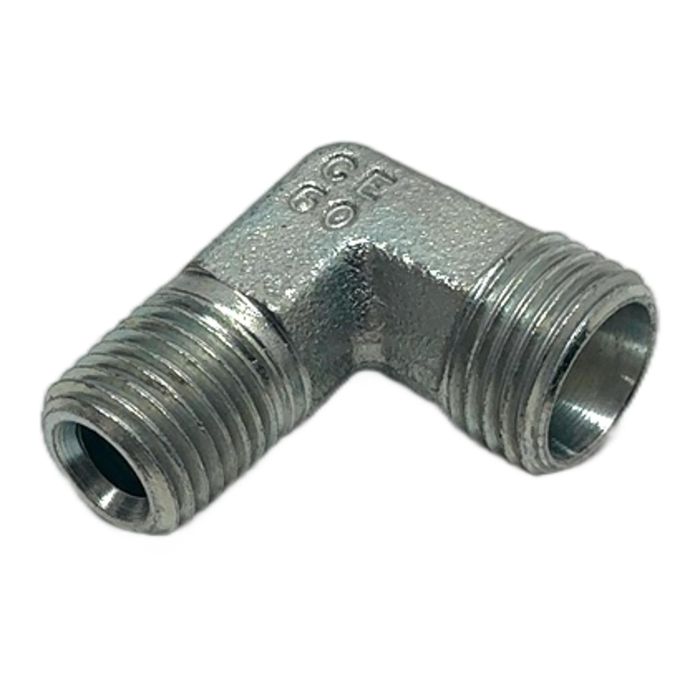

This is a WEV series male stud elbow fitting manufactured by VOSS, a leader in hydraulic connection technology. This 90-degree fitting is designed to connect a 10mm OD tube to a port with a 1/4 inch NPT thread. Its robust steel construction with zinc plating ensures high durability and resistance to corrosion, making it suitable for a wide range of hydraulic applications.

Specifications

• Manufacturer: VOSS
• Part Number: WEV 10L 1/4NPT
• Type: Male Stud Elbow Fitting
• Connection 1: For 10 mm Outer Diameter Tube (Light Series)
• Connection 2: 1/4 inch NPT Male Thread
• Material: Zinc-Plated Steel
• Standard: Conforms to DIN 2353 / ISO 8434-1

Label Info

• Brand: VOSS (Visible on part)
• Model: 10L (Visible on part)
• Distributor Part Number: MA-20-14-04-

Application

Ideal for use in industrial machinery, mobile hydraulics, construction equipment, and general fluid power systems requiring a reliable 90-degree connection.

Country of Origin

Manufactured in Germany.

CO2 Impact

Reusing this component saves approximately 0.15 kg of CO2, equivalent to the energy needed to charge a smartphone 18 times. This choice supports a circular economy and reduces industrial waste.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The pressure rating for VOSS 10L series fittings depends on the specific application and tubing used, but it is typically rated for a nominal pressure (PN) of up to 315 bar (approx. 4568 PSI) in steel. Always consult the VOSS technical datasheet for the exact pressure rating corresponding to your tube material and wall thickness.

Proper assembly involves using a pre-assembly tool or manually tightening the nut 1.5 turns past the point of initial resistance where the cutting ring bites into the tube. Over-tightening or under-tightening can compromise the seal. VOSS provides detailed assembly instructions which should always be followed.

While VOSS fittings conform to the DIN 2353 / ISO 8434-1 standard, which makes them dimensionally interchangeable with other compliant brands, it is always best practice not to mix components (like nuts or cutting rings) from different manufacturers in a single connection to guarantee performance and safety.
