Van De Calseyde Hydraulics WEV 10L 1/4NPT Elbow Fitting

Description

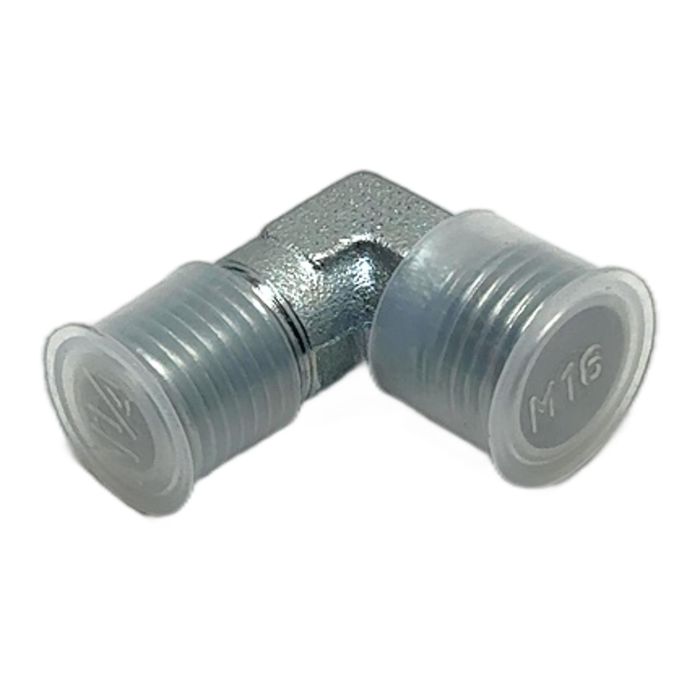

This is a new, unused WEV 10L 1/4NPT male stud elbow fitting distributed by Van De Calseyde Hydraulics. It is a standard component for hydraulic tube systems conforming to DIN 2353 and ISO 8434-1. The fitting provides a 90-degree connection between a 10mm tube (Light series) and a 1/4 inch NPT threaded port. Its robust, zinc-plated steel construction ensures high pressure resistance and longevity in demanding industrial environments.

Specifications

• Manufacturer: Van De Calseyde Hydraulics
• Type Number: WEV 10L 1/4NPT
• Distributor Part Number: MA-20-14-04
• Connection 1: Compression fitting for 10mm OD tube (Light Series)
• Connection 2: Male thread 1/4 inch NPT
• Body Style: 90-degree Male Stud Elbow
• Material: Zinc-plated steel

Application

This fitting is widely used in general hydraulics, machine building, agricultural machinery, construction equipment, and other fluid power applications requiring a secure, right-angle connection.

CO2 Impact

Opting for this component avoids the production of a new one, saving an estimated 0.12 kg of CO2. This is equivalent to the emissions from driving a car for 0.6 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the maximum working pressure for this WEV 10L 1/4NPT fitting?

Standard Light (L) series 10mm DIN 2353 fittings made of steel are typically rated for a pressure of up to 315 bar (approx. 4568 PSI). However, you should always consult the manufacturer's specific datasheet and ensure your entire system is rated for the intended operating pressure.

This listing is for the fitting body only, as shown in the images. The compression nut (e.g., M10L) and cutting ring (e.g., D10L) are required for a complete assembly and must be purchased separately.

NPT (National Pipe Thread) is a US standard for tapered threads that create a seal via thread deformation. BSPP (British Standard Pipe Parallel) requires a sealing washer, while BSPT (British Standard Pipe Tapered) is similar to NPT but with a different thread angle (55 deg vs 60 deg for NPT). It is crucial to use the correct thread type to prevent leaks and system damage.
