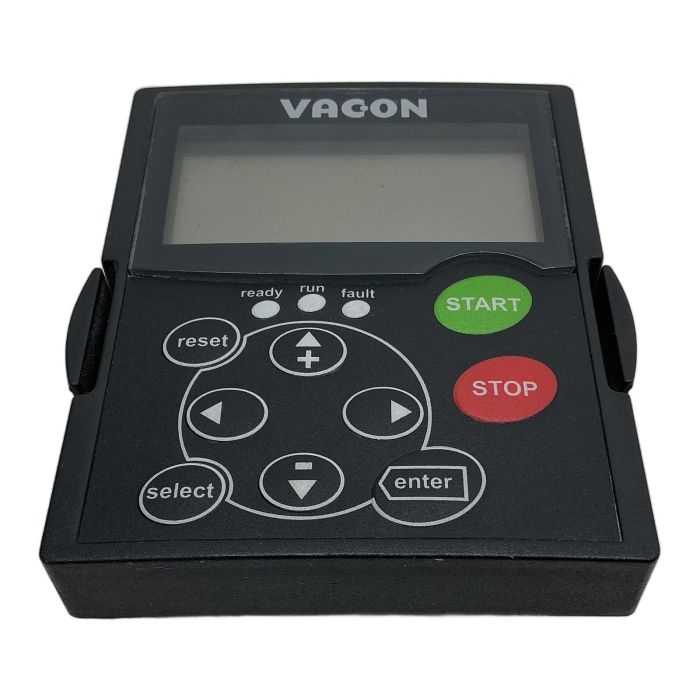

Vacon HMI Operator Panel OP-AF 70NXP00PAN1

Description

This is a genuine Vacon graphical operator panel, model OP-AF, designed for intuitive control and monitoring of Vacon AC drives. It provides a user-friendly interface for parameter setting, real-time monitoring, and diagnostics, making it an essential tool for commissioning and maintenance.

Specifications

• Manufacturer: Vacon (Danfoss)
• Type: HMI Operator Panel / Keypad
• Model: OP-AF
• Part Number: 70NXP00PAN1
• Display: Graphical LCD with backlight
• Connection: 9-pin D-Sub connector
• Compatibility: Vacon NXS, NXP, NXC, NXL series

Label Info

• Serial Number: 25410230543E

Application

This operator panel is specifically designed to be mounted on or connected to Vacon NXS and NXP series frequency converters. It is widely used in various industrial applications for process control, including pumps, fans, conveyors, and other machinery.

Country of Origin

Made in Finland.

CO2 Impact

By purchasing this refurbished component, you are contributing to a circular economy and avoiding approximately 8 kg of CO2 emissions associated with the production of a new unit. This saving is equivalent to the emissions from driving a car for 40 kilometers.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this keypad compatible with the Vacon 100 series drives?

No, this panel is specifically designed for the older Vacon NXS, NXP, NXC, and NXL series. The Vacon 100 series uses a different type of control panel.

The panel connects using a standard 9-pin D-Sub (RS-232 type) cable to the drive's control board. This cable is typically not included with the panel.

Yes, a key feature of this graphical panel is the ability to save, copy, and transfer parameter sets between compatible Vacon drives, which significantly speeds up the commissioning of multiple identical units.
