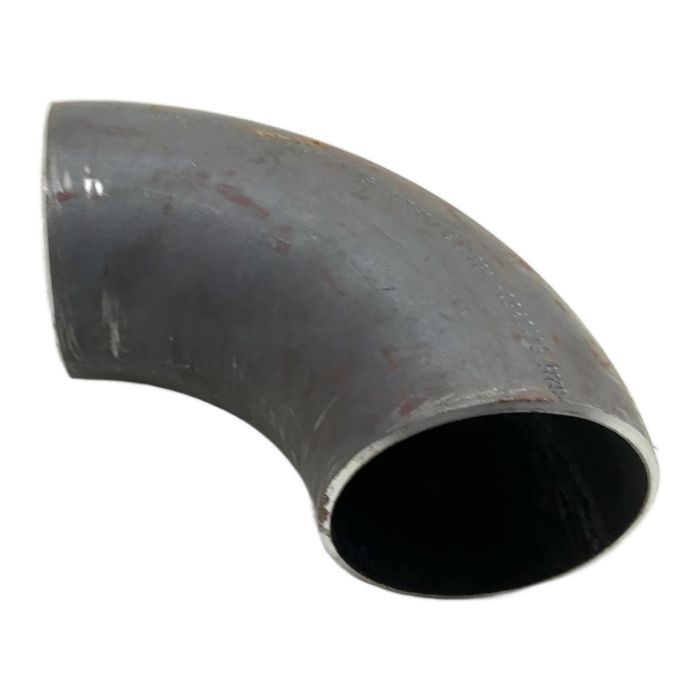

Unbranded 90-Degree 3D Butt-Weld Pipe Elbow

Description

This is a standard 90-degree butt-weld pipe elbow with a 3D bend radius, designed for industrial piping systems. Manufactured from S235 carbon steel according to the EN 10253-1 standard, it provides a durable and reliable solution for changing the direction of flow in a pipeline. Its dimensions of 88.9 mm outer diameter and 3.2 mm wall thickness make it suitable for a variety of general-purpose applications.

Specifications

• Type: 90-Degree Elbow
• Bend Radius: 3D
• Connection Type: Butt-weld
• Material: S235 Carbon Steel
• Standard: EN 10253-1
• Outer Diameter: 88.9 mm
• Wall Thickness: 3.2 mm

Label Info

The product is marked with the following information:

• CURVE 3D 90 deg
• Diam. 88.9 x 3.2
• EN 10253-1
• S235

Application

This elbow is intended for butt-welding into piping systems used for transporting fluids, gases, or other media in industrial plants, construction, and mechanical engineering environments.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and avoiding 5.7 kg of CO2 emissions. This is comparable to the emissions from driving an average car for 28.5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does "3D" mean for an elbow?
The "3D" designation refers to the bend radius of the elbow. It means the radius of the bend's centerline is three times the nominal pipe diameter (in this case, 3 x 88.9mm). This provides a more gradual turn compared to a standard 1.5D (Long Radius) elbow, which can reduce pressure drop.

Is S235 steel weldable?
Yes, S235 is a common structural steel with excellent weldability. It can be welded using standard welding processes without the need for pre-heating or post-weld heat treatment in this thickness.

What does "EN 10253-1 Type A" signify?
EN 10253-1 is the European standard for butt-welding fittings made of wrought carbon steel for general use. "Type A" specifies that the fitting has the same wall thickness at the welding ends and on the body of the fitting, making it suitable for systems where pressure is not the primary design constraint.
