Produkt Info: Type Bi3-G12K-Ad4X, Ident. No. 4405030, Rated Switching Distance 3 Mm, Mounting Conditions Flush, Secured Operating Distance ≤ (0.81 × Sn) Mm, Correction Factors St37 = 1; Al = 0.3; Stainless Steel = 0.7; Ms =, 0.4, Repeat Accuracy ≤ 2 % Of Full Scale, Temperature Drift ≤ ± 10 %, Hysteresis 1…15 %, Ambient Temperature -25…+70 °C, Operating Voltage 10…65 Vdc, Residual Ripple ≤ 10 % Uss, Dc Rated Operational Current ≤ 100 Ma, Residual Current ≤ 0.6 Ma, Isolation Test Voltage ≤ 0.5 Kv, Short-Circuit Protection Yes / Cyclic, Voltage Drop At Ie ≤ 5 V, Wire Breakage/Reverse Polarity Protection Complete, Output Function 2-Wire, No Contact, 2-Wire, Smallest Operating Current ≥ 3 Ma, Switching Frequency 1 Khz, Design Threaded Barrel, M12 × 1, Dimensions 34 Mm, Housing Material Metal, Cuzn, Chrome-Plated, Active Area Material Plastic, Pa12-Gf30, Max. Tightening Torque Housing Nut 10 Nm, Electrical Connection Cable, 2 Mtrs., * Label Info: Type Bi3-G12K-Ad4X, Ident-No. 4405030, 0681, Bn, +(-), Bu (+), Turch, Industrial, Automation, 10...65 Vdc, 3...100 Ma ®, +, Sn: 3 Mm, C, Սլ, Ulus, Listed, 36 Gn, Class 2 Source, Ind.Cont.Eq,

• Product Info:
  • Type: Bi3-G12K-Ad4X
  • Ident. No.: 4405030
  • Rated Switching Distance: 3 mm
  • Mounting Conditions: Flush
  • Secured Operating Distance: ≤ (0.81 × Sn) mm
  • Correction Factors: St37 = 1; Al = 0.3; Stainless Steel = 0.7; Ms = 0.4
  • Repeat Accuracy: ≤ 2% of Full Scale
  • Temperature Drift: ≤ ± 10%
  • Hysteresis: 1…15%
  • Ambient Temperature: -25…+70 °C
  • Operating Voltage: 10…65 Vdc
  • Residual Ripple: ≤ 10% Uss
  • Dc Rated Operational Current: ≤ 100 mA
  • Residual Current: ≤ 0.6 mA
  • Isolation Test Voltage: ≤ 0.5 kV
  • Short-Circuit Protection: Yes / Cyclic
  • Voltage Drop At Ie: ≤ 5 V
  • Wire Breakage/Reverse Polarity Protection: Complete
  • Output Function: 2-Wire, No Contact
  • Smallest Operating Current: ≥ 3 mA
  • Switching Frequency: 1 kHz
  • Design: Threaded Barrel, M12 × 1
  • Dimensions: 34 mm
  • Housing Material: Metal, Cuzn, Chrome-Plated
  • Active Area Material: Plastic, Pa12-Gf30
  • Max. Tightening Torque Housing Nut: 10 Nm
  • Electrical Connection: Cable, 2 Mtrs.
• Label Info:
  • Type: Bi3-G12K-Ad4X
  • Ident-No.: 4405030
  • 0681, Bn, +(-), Bu (+), Turch, Industrial, Automation, 10...65 Vdc, 3...100 Ma ®, +, Sn: 3 mm, C, Սլ, Ulus, Listed, 36 Gn, Class 2 Source, Ind.Cont.Eq

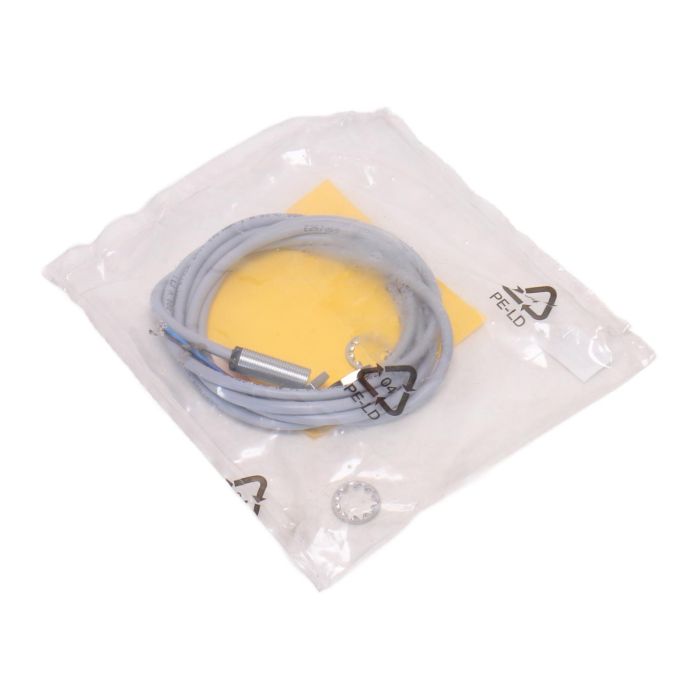

Bi3-G12K-AD4X 4405030 Turck is a versatile sensor used in various industrial applications such as automation, manufacturing, and material handling. This high-quality sensor can be purchased at PLC2Day for all your industrial automation needs.
