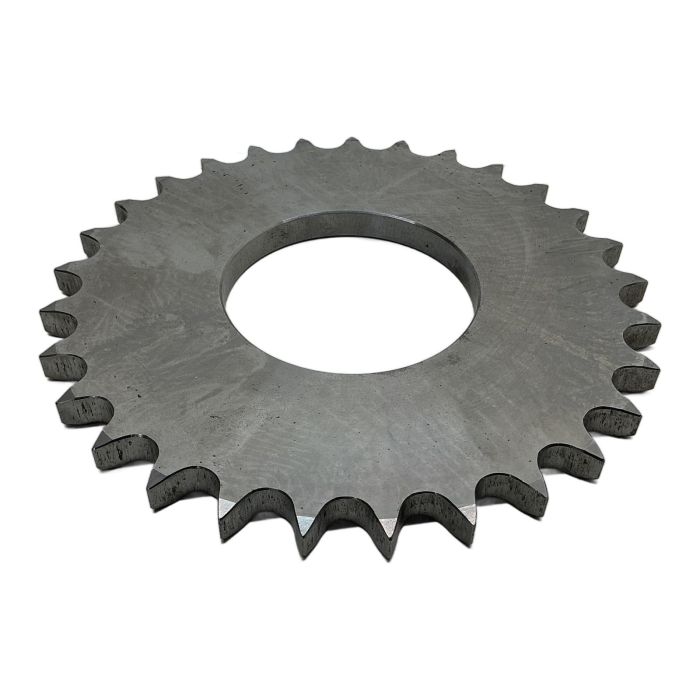

Tsubaki Sprocket Plate for TL700 Torque Limiter

Description

This is a high-quality steel sprocket plate, specifically designed for use with the Tsubaki TL700 series of torque limiters. As an essential component in a chain drive system, this plate wheel ensures reliable power transmission and provides a mounting point within an overload protection assembly. This part is new old stock, originally intended as a spare for industrial machinery.

Specifications

• Manufacturer: Tsubaki
• Part Type: Sprocket Plate / Plate Wheel
• Application: Tsubaki TL700 Torque Limiter
• Teeth Count: 30
• Chain Pitch: 1/2 inch (ISO 08B-1 / ANSI 40)
• Material: Steel

Label Info

• End-User Part Number: 149219
• Description: KETTINGWIEL BB14 TORQUE LIMIT. TL700-1/2
• Stamped Marking: 126237

Application

Ideal for maintenance and repair of conveyor systems, packaging machinery, and other industrial equipment that utilizes Tsubaki TL700 torque limiters for overload protection.

Country of Origin

Manufactured in Japan.

CO2 Impact

By purchasing this reused industrial part, you are saving approximately 1.0 kg of CO2 emissions compared to producing a new one. This is equivalent to the emissions from driving a car for 5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

You must verify the bore diameter and the bolt hole pattern (number of holes and their pitch circle diameter) of your existing unit. This sprocket is a flat plate wheel without a pre-drilled central bore, allowing for custom machining to match your specific requirements.

This sprocket is designed for a 1/2 inch pitch roller chain. This corresponds to international standard ISO 08B-1 and American standard ANSI 40.

The number '149219' on the bag is the internal stock number from the original end-user and corresponds to the detailed description. The number '126237' stamped directly on the part is likely a manufacturing batch or casting number and is less useful for identification.
