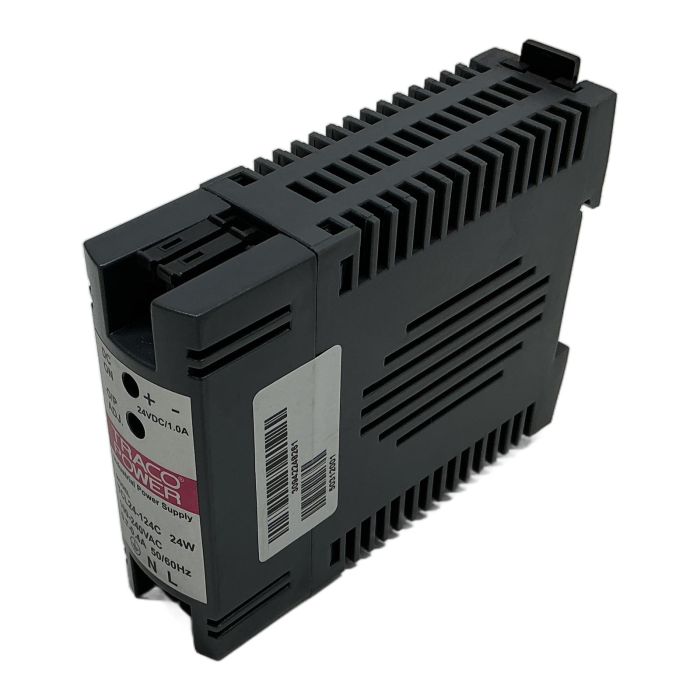

Traco Power TCL24-124C DIN-Rail Power Supply

Description

The Traco Power TCL24-124C is a high-efficiency, ultra-compact industrial power supply designed for DIN-rail mounting. It provides a stable and reliable 24 VDC output, making it an excellent choice for powering PLCs, sensors, and other control equipment in industrial automation systems. With its wide input voltage range and robust design, this power supply ensures consistent performance in demanding environments.

Specifications

• Manufacturer: Traco Power
• Model: TCL24-124C
• Output Voltage: 24 VDC
• Output Current: 1.0 A
• Power Rating: 24 W
• Input Voltage: 100-240 VAC
• Frequency: 50/60 Hz
• Mounting Type: DIN-rail
• Efficiency: up to 84%
• Operating Temperature: -25 deg C to +70 deg C

Label Info

• Output: 24VDC / 1.0A
• Input: 100-240VAC, 0.7-0.4A, 50/60Hz
• Certifications: CE, cULus Listed (E181381), CB Scheme

Application

This power supply is ideal for various industrial applications, including factory automation, process control, building automation, and machine control panels where a reliable 24VDC source is required in a compact form factor.

CO2 Impact

Opting for this reused component prevents the emission of approximately 6.8 kg of CO2, which would have been generated during the production of a new unit. This saving is comparable to charging a smartphone over 800 times.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the purpose of the 'O/P ADJ.' potentiometer?

The 'O/P ADJ.' potentiometer allows you to fine-tune the DC output voltage. For the TCL24-124C, this adjustment range is typically from 22.5 VDC to 25.5 VDC, enabling precise voltage setting for sensitive applications.

The standard TCL24-124C is not designed for direct parallel operation to increase current. For applications requiring redundancy or higher power, it is recommended to use an external decoupling module or select a power supply model specifically designed with parallel operation features.

The Traco Power TCL24-124C has a wide operating temperature range from -25 deg C to +70 deg C. Note that a power derating may apply at higher temperatures, typically above +55 deg C, as specified in the product's datasheet.
