Toshiba VF-nC3 Series Frequency Inverter

Description

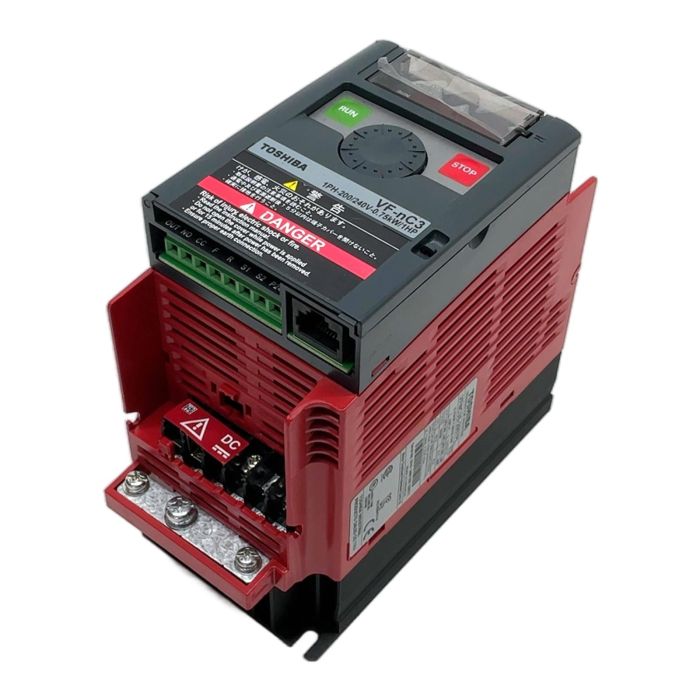

The Toshiba VFNC3S-2007PL is a compact and user-friendly variable frequency drive (VFD) designed for controlling the speed of three-phase AC motors. With a power rating of 0.75 kW (1 HP) and operating on a single-phase 200-240V input, it is an ideal solution for a wide range of simple industrial applications such as fans, pumps, and conveyors. Its integrated control panel with a potentiometer and start/stop buttons allows for quick and easy setup without the need for external programming devices. This drive is part of the reliable VF-nC3 series, known for its compact design and efficient performance.

Specifications

• Manufacturer: Toshiba
• Series: VF-nC3
• Model: VFNC3S-2007PL
• Power Rating: 0.75 kW / 1 HP
• Input Voltage: 1-Phase 200-240V AC, 50/60 Hz
• Input Current: 10.2 A
• Output Voltage: 3-Phase 200-240V AC
• Output Current: 4.2 A
• Output Frequency Range: 0.1 to 400 Hz
• Enclosure: IP20

Label Info

• Serial No: 8310 14001205 3200 (1)
• Certifications: CE, UL, SP, KCC

Application

This inverter is perfectly suited for applications requiring basic speed control, including ventilation systems, small conveyor belts, centrifugal pumps, and other machinery where adjusting motor speed improves process efficiency and saves energy.

Country of Origin

Made in Indonesia.

CO2 Impact

By purchasing this pre-owned inverter, you are contributing to a circular economy and preventing approximately 40 kg of CO2 emissions that would be generated from the production of a new unit.

Availability

This item is an obsolete model but is available from our stock for immediate dispatch. It serves as an excellent spare part to maintain existing installations. Order now from PLC2Day for expert support and fast delivery.

FAQ

Can the VFNC3S-2007PL be controlled remotely without using the front panel buttons?

Answer

Yes, it can be controlled via the terminal strip. You can wire external switches for run/stop and a potentiometer for speed reference using the control terminals (F, R, S1, S2, etc.) as detailed in the user manual.

What is the maximum output frequency of this drive, and is it suitable for high-speed applications?

Answer

The VFNC3S-2007PL has a maximum output frequency of 400 Hz. This makes it suitable for standard motor applications as well as some higher-speed applications like spindles or grinders, provided the motor is rated for such speeds.

Is an external braking resistor required for this inverter?

Answer

This compact model does not have a built-in braking chopper or terminals for an external braking resistor. It relies on DC injection braking. For applications with high inertia or requiring fast deceleration, a larger model with braking capabilities would be necessary.
