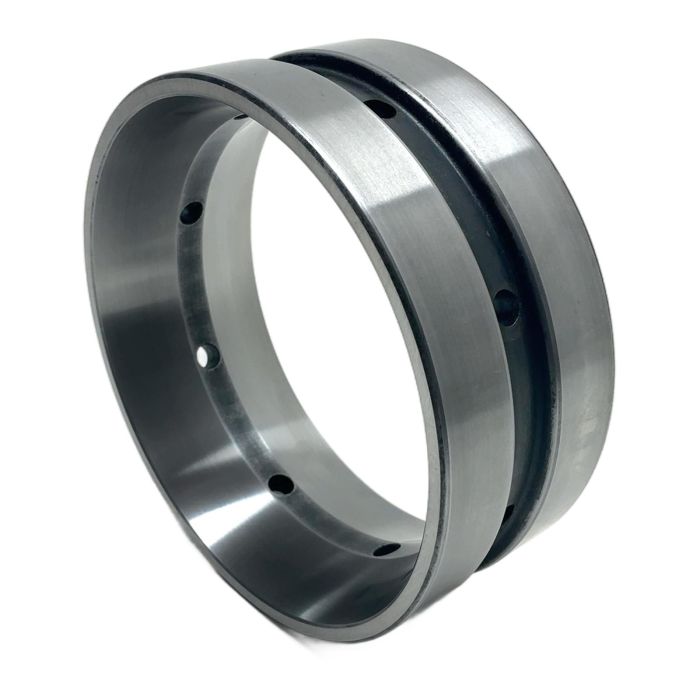

Timken Tapered Roller Bearing Double Cup 493D

Description

This is a Timken 493D, a high-quality tapered roller bearing double cup. Engineered for precision and durability, this component is essential for applications requiring high radial and axial load capacities. Its robust design ensures reliable performance in demanding industrial environments such as gearboxes, axles, and heavy machinery.

Specifications

• Manufacturer: Timken
• Part Number: 493D
• Product Type: Tapered Roller Bearing Double Cup (Outer Ring)
• Bore Diameter: 120.65 mm (4.75 in)
• Outer Diameter: 152.4 mm (6.00 in)
• Width: 60.325 mm (2.375 in)
• Material: Case-Hardened Steel

Label Info

• Part Number on Sticker: 493D-20081
• Markings on Bearing: TIMKEN 493D HP USA

Application

Ideal for use in heavy-duty transmissions, industrial gear drives, and agricultural machinery where two-row tapered roller bearings are specified to handle combined loads and provide system rigidity.

Country of Origin

Made in the USA.

CO2 Impact

Choosing this reused component saves an estimated 6.52 kg of CO2 compared to manufacturing a new one. This is comparable to the emissions saved by driving a car for 32 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What cone assembly is compatible with the Timken 493D double cup?

The 493D cup is designed to be used with two single cone assemblies. The standard mating cone is the Timken 494A. Always verify your application's specific requirements before assembly.

The 'HP' designation stands for High Performance. It indicates that the bearing is manufactured with enhanced geometry, surface finishes, and material cleanliness, resulting in higher load ratings, reduced friction, and longer service life compared to standard bearings.

No, this product is only the 493D double cup (outer ring). The cone assemblies (inner rings with rollers) must be purchased separately to form a complete tapered roller bearing.
