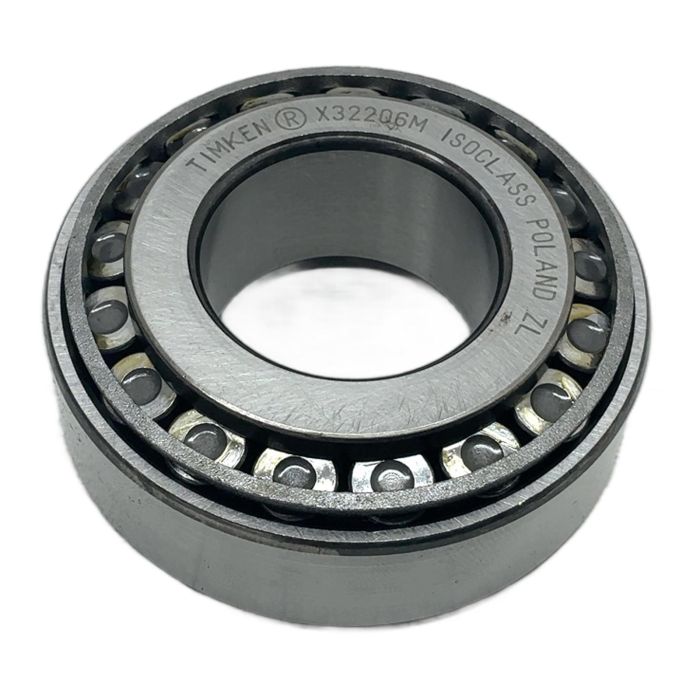

Timken 32206M Tapered Roller Bearing

Description

This Timken 32206M is a single-row tapered roller bearing designed for high performance and reliability. It is engineered to manage both radial and axial loads simultaneously. As part of the Timken IsoClass range, it meets stringent quality standards. The 'M' designation indicates a machined brass cage, which provides enhanced durability and performance in demanding conditions. This bearing is a crucial component for a wide range of industrial and automotive applications.

Specifications

• Manufacturer: Timken
• Model: 32206M
• Product Type: Tapered Roller Bearing
• Bore Diameter (d): 30 mm
• Outside Diameter (D): 62 mm
• Total Width (T): 21.25 mm
• Cage Material: Machined Brass (M-type)

Label Info

• Brand: TIMKEN
• Model on Bearing: X32206M
• Model on Box: 32206M 90KM1
• EAN: 0053893430867

Application

Tapered roller bearings like the 32206M are commonly used in applications such as vehicle wheel hubs, industrial gearboxes, axles, and various machinery where combined loads are present.

Country of Origin

This bearing is manufactured in Poland.

CO2 Impact

Opting for this pre-owned bearing instead of a new one prevents the emission of approximately 0.58 kg of CO2, which is comparable to the emissions from driving a standard car for 2.9 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'M' suffix in Timken bearings typically denotes a machined brass or bronze cage. This type of cage offers superior strength and performance, especially in applications with high speeds, heavy loads, or vibration.

No, single-row tapered roller bearings like this one are generally not pre-greased. They must be lubricated with appropriate grease or oil during installation according to the application's requirements.

It is strongly recommended to use the cone and cup as a matched set as supplied by Timken. While dimensions are standardized, small differences in internal geometry between manufacturers can lead to improper load distribution, reduced bearing life, and potential failure.

PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.

Last Update: Friday, March 13, 2026
