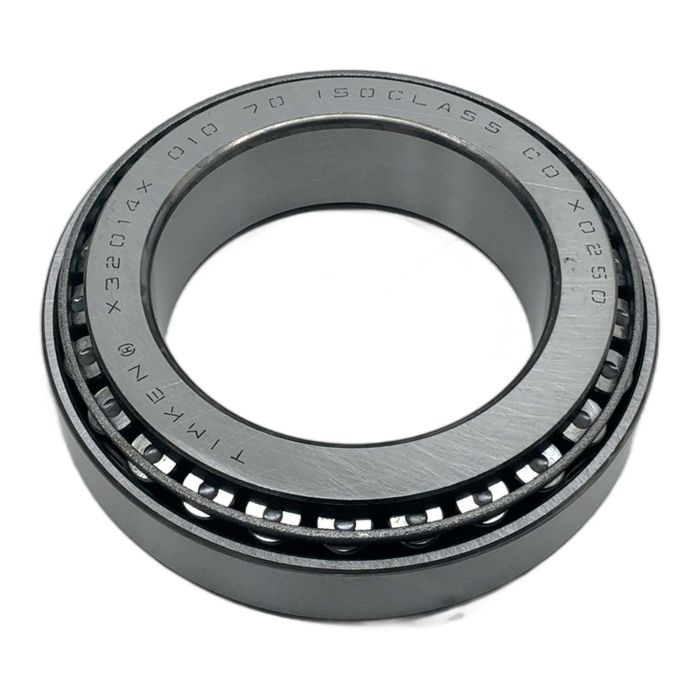

Timken 32014X Tapered Roller Bearing

Description

The Timken 32014X is a high-performance single-row tapered roller bearing designed for reliability in demanding industrial applications. Its unique geometry allows it to handle both radial and axial loads simultaneously. The separable design, with a distinct cone (inner ring with rollers) and cup (outer ring), simplifies mounting, dismounting, and inspection procedures.

Specifications

• Manufacturer: Timken
• Part Number: 32014X
• Type: Tapered Roller Bearing
• Bore Diameter (d): 70 mm
• Outside Diameter (D): 110 mm
• Total Width (T): 25 mm
• Cone Width (B): 25 mm
• Cup Width (C): 20 mm
• Material: Case-Hardened Bearing Steel

Label Info

• Cone Marking: Y32014X
• Cup Marking: X32014X
• Box Label: 32014X 9X025
• ISO Class: C0 (Normal)

Application

This bearing is commonly used in gearboxes, hoisting equipment, rolling mills, and machinery for the mining, paper, and aggregate industries where heavy loads and challenging conditions are present.

CO2 Impact

Choosing a pre-owned component like this Timken bearing prevents the emission of approximately 1.7 kg of CO2, which would have been generated during the production of a new one. This saving is equivalent to driving a car for over 8 kilometers.

Availability

This item is in stock and ready for immediate dispatch. It is a new-old-stock item in its original, opened box. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of lubrication is recommended for the Timken 32014X?

The appropriate lubrication (oil or grease) depends heavily on the operating speed, temperature, and load of your application. For general industrial use, a high-quality lithium complex grease with an EP (Extreme Pressure) additive is often suitable. Always consult your machinery's maintenance manual for specific recommendations.

Yes, setting the correct preload is critical for the performance and lifespan of tapered roller bearings. Preload eliminates internal clearance, increasing rigidity and preventing roller skidding under light loads. The required preload value is application-specific and should be determined by the equipment designer.

'ISO CLASS C0' refers to the dimensional and running accuracy of the bearing, corresponding to the 'Normal' tolerance class according to ISO 492. This is the standard tolerance for a wide range of general industrial applications and ensures interchangeability with other bearings of the same class.
