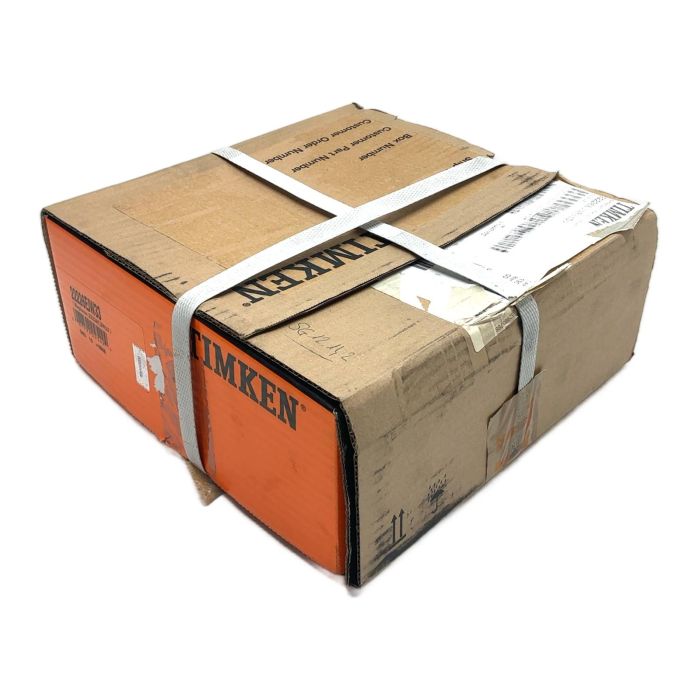

Timken 22226EJW33 Spherical Roller Bearing

Description

The Timken 22226EJW33 is a high-capacity spherical roller bearing designed for reliability in the most demanding applications. It features a two-piece stamped steel cage for high strength and durability. This bearing is engineered to handle heavy radial and axial loads while accommodating shaft misalignment. The W33 feature provides a standard lubrication groove and holes in the outer ring to simplify maintenance and ensure consistent performance.

Specifications

• Manufacturer: Timken
• Part Number: 22226EJW33
• Inner Diameter (Bore): 130 mm
• Outer Diameter: 230 mm
• Width: 64 mm
• Cage Type: Stamped Steel (EJ)
• Clearance: Standard CN
• Lubrication: W33 Annular Groove and 3 Holes
• Dynamic Load Rating: 721 kN
• Static Load Rating: 869 kN

Label Info

• Model: 22226EJW33
• Replaces: 22226CJW33
• EAN: 087796025424

Application

Ideal for use in heavy industrial equipment such as gearboxes, wind turbines, continuous casting machines, pumps, fans, and material handling equipment.

Country of Origin

Manufactured by Timken in the USA.

CO2 Impact

Opting for this component saves approximately 22.4 kg of CO2 compared to new production, supporting sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'EJW33' suffix in the model number 22226EJW33?

The 'EJ' designation indicates that the bearing is fitted with a two-piece, window-type stamped steel cage. The 'W33' suffix signifies that the bearing's outer ring has an annular lubrication groove and three lubrication holes, facilitating efficient grease or oil distribution.

Can this 22226EJW33 bearing be used with oil lubrication, and what is its limiting speed?

Yes, this bearing is suitable for both grease and oil lubrication. The W33 lubrication groove is ideal for circulating oil systems. The limiting speed depends on the lubrication method and operating conditions, but for this model, the reference speed is typically around 2,400 RPM with oil lubrication. Always consult the manufacturer's datasheet for precise limits based on your application's load and temperature.

What is the recommended mounting procedure for a bearing of this size?

For a bearing with a 130mm bore like the 22226EJW33, it is typically mounted with an interference fit on the shaft. The recommended method is using a bearing heater (induction heater) to expand the inner ring for easy and damage-free installation. Alternatively, hydraulic mounting methods can be used. Never use a hammer or direct force on the cage or rolling elements.
