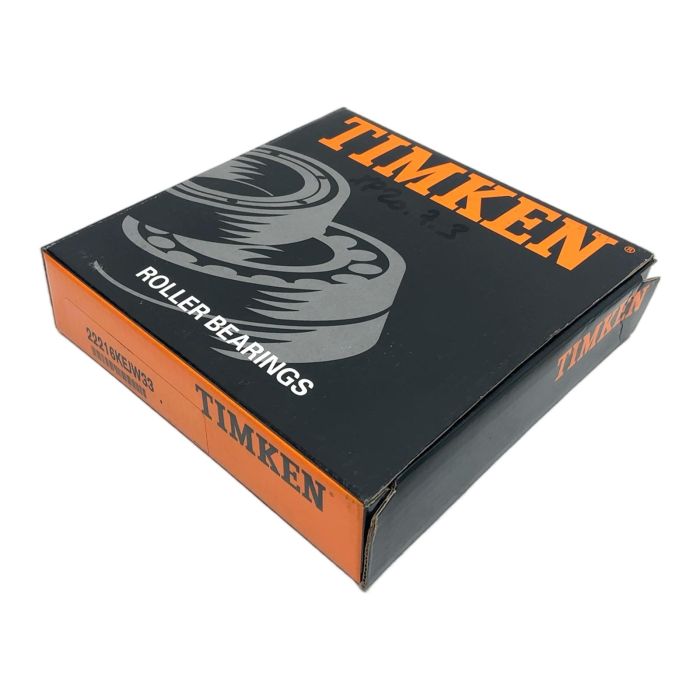

Timken 22216KEJW33 Spherical Roller Bearing

Description

The Timken 22216KEJW33 is a high-capacity spherical roller bearing designed to handle radial and axial loads in demanding industrial environments. Its internal design allows it to accommodate significant misalignment between the shaft and housing. This bearing is supplied in its original, sealed packaging, ensuring it is in pristine condition and ready for installation.

Specifications

• Bore Diameter (d): 80 mm
• Outside Diameter (D): 140 mm
• Width (B): 33 mm
• Bore Type: Tapered Bore (1:12 taper)
• Cage Material: Stamped Steel (EJ Suffix)
• Lubrication Feature: Annular groove and three lubrication holes in the outer ring (W33 Suffix)
• Basic Dynamic Load Rating: 257 kN
• Basic Static Load Rating: 268 kN

Label Info

• Manufacturer: Timken
• Type: 22216KEJW33
• EAN: 087796023390

Application

This bearing is ideal for use in heavy-duty equipment such as gearboxes, conveyor systems, paper machines, fans, and construction machinery where misalignment and heavy loads are prevalent.

Country of Origin

Made in the USA.

CO2 Impact

By choosing this refurbished or surplus bearing, you are avoiding approximately 4.6 kg of CO2 emissions associated with the production of a new one. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'K' suffix indicates that the bearing has a tapered bore, specifically with a 1:12 taper. This design allows for mounting on a tapered shaft journal or on a cylindrical shaft using an adapter sleeve.

Mounting a tapered bore bearing involves driving it up the tapered seat to achieve the correct internal clearance reduction. This is typically done using a hydraulic nut or by measuring the axial drive-up distance. It is crucial to follow the manufacturer's guidelines to prevent over-tightening and premature failure.

The W33 feature, which consists of a groove and three holes in the outer ring, is standard for this bearing size and facilitates efficient relubrication directly to the rolling elements. While not mandatory for all applications, it is highly recommended for ensuring optimal performance and extending the bearing's service life, especially in demanding or hard-to-reach locations.
