THK SHS15LV2KKHH+700LK Linear Guide Assembly

Description

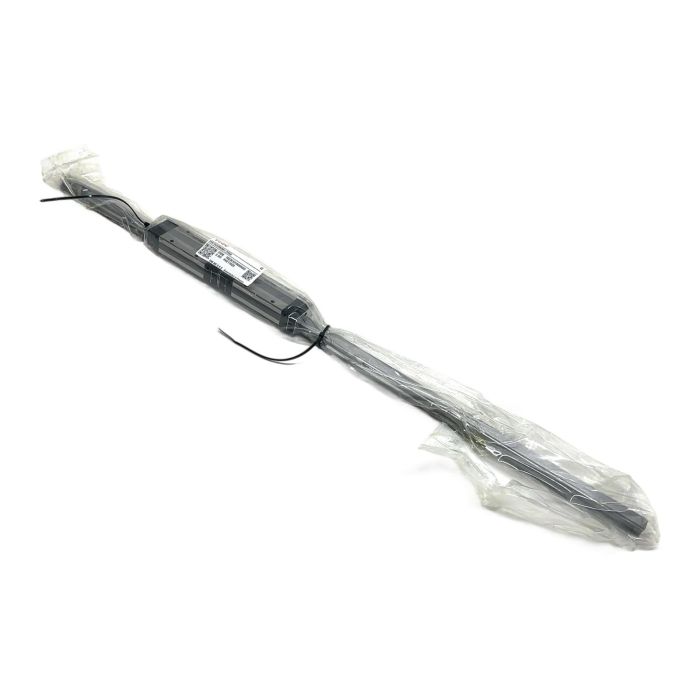

This is a high-precision Caged Ball LM Guide assembly from THK, part number SHS15LV2KKHH+700LK. The assembly includes a 700mm rail and two SHS15LV blocks, designed for superior rigidity, accuracy, and smooth motion. The caged ball technology ensures low noise, minimal friction, and long-term maintenance-free operation, making it suitable for high-performance machinery, robotics, and precision automation systems.

Specifications

• Manufacturer: THK
• Model: SHS15LV2KKHH+700LK
• Product Type: Linear Guide Assembly
• Rail Length: 700 mm
• Block Model: SHS15LV (Low Profile, Long Type)
• Number of Blocks: 2
• Accuracy Grade: HH (High Grade)
• Preload: HH (Slight Preload)
• Sealing: KK (End, side, and inner seals)

Label Info

• Item No: 102361015099000
• Serial No: FHE11629

Application

Perfect for applications requiring precise linear movement, such as in CNC machines, 3D printers, semiconductor manufacturing equipment, and automated assembly lines.

Country of Origin

Assembled in France.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and saving approximately 2.8 kg of CO2 emissions compared to manufacturing a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'KK' suffix indicates the type of dust protection seals on the LM block, typically including end seals, side seals, and inner seals for comprehensive protection. The 'HH' suffix denotes a high precision grade for accuracy and a slight preload, which eliminates clearance for increased rigidity and precision in motion.

Yes, the LM blocks can be removed, but it must be done carefully to prevent the balls from falling out. It is recommended to slide the block from the main rail directly onto a transfer or dummy rail of the same size. Re-installation should follow the same procedure in reverse to ensure the integrity of the ball circuits.

The primary advantage of Caged Ball technology is the elimination of friction between the balls, as each ball is held in an individual pocket within the retainer cage. This results in smoother and quieter motion, lower particle generation, and longer service life with reduced maintenance requirements compared to non-caged ball systems.
