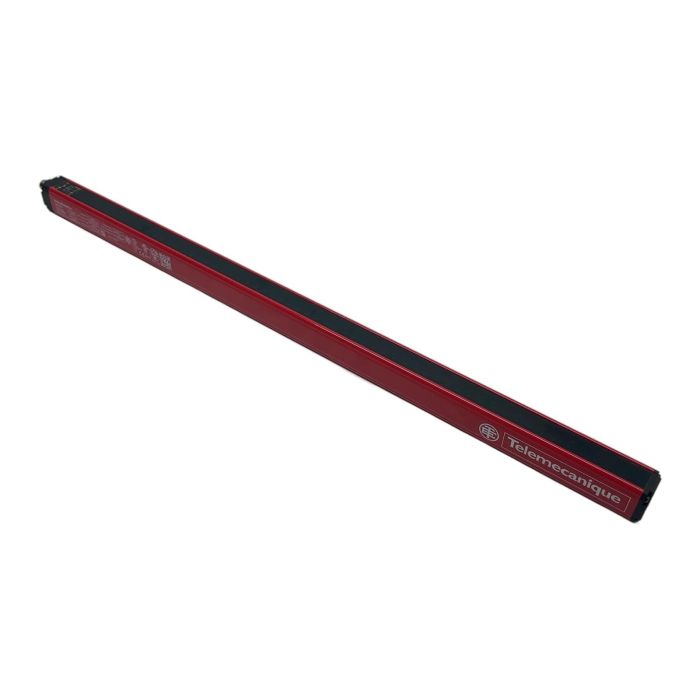

Telemecanique XUSL4E30H061N Safety Light Curtain Receiver

Description

The Telemecanique XUSL4E30H061N is a high-performance safety light curtain receiver, part of the Schneider Electric Preventa XUSL4E series. This device is engineered for machine safety applications, providing robust and reliable personnel protection. It establishes an infrared detection zone and triggers a stop signal to the machine's control system when an object is detected. This receiver is rated Type 4, SIL 3, and PLe, ensuring compliance with the highest international safety standards.

Specifications

• Function: Receiver
• Safety Level: Type 4, SIL 3 according to IEC 61508, PLe according to ISO 13849-1
• Protected Height: 610 mm
• Resolution: 30 mm (hand detection)
• Sensing Range: 0 to 4 m (short range), 0 to 12 m (long range)
• Response Time: Less than or equal to 9 ms
• Power Supply: 24V DC
• Power Consumption: 2 W
• Operating Temperature: -10 to +55 deg C
• Ingress Protection: IP65 / IP67

Label Info

• Model: XUSL4E30H061N
• Part Number: 8043031
• Serial Number: 15460478

Application

This safety light curtain receiver is ideal for protecting access points and hazardous areas around industrial machinery such as presses, packaging machines, assembly lines, and robotic cells.

Country of Origin

Made in Italy.

CO2 Impact

Opting for a refurbished unit like this one prevents the emission of approximately 48 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 240 kilometers.

Availability

This item is in stock and ready for immediate dispatch. We offer worldwide shipping options to meet your operational needs. Order now from PLC2Day for expert support and fast delivery.

FAQ

The emitter (transmitter) projects parallel infrared light beams, while the receiver, this specific unit, detects these beams. An interruption in any beam by an object triggers the safety output signals (OSSDs) to stop the machine.

A 30mm resolution is designed to detect a hand or arm. The safety distance, the minimum distance the curtain must be from the hazard, is calculated based on this resolution, the overall system stopping time, and approach speed, as specified in standards like ISO 13855.

No, this receiver must be paired with a corresponding Telemecanique emitter from the same XUSL4E series with the same protected height and resolution to ensure proper functionality and safety certification.
