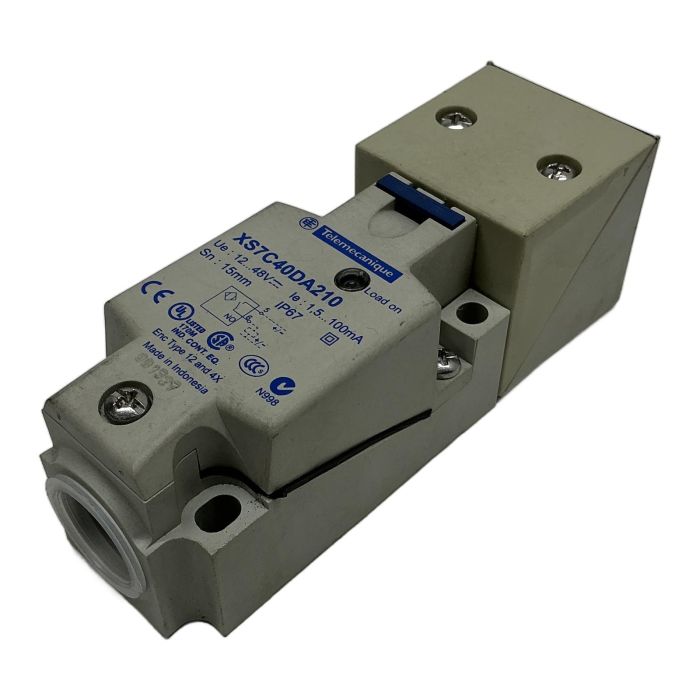

Telemecanique XS7C40DA210 Inductive Proximity Sensor

Description

The Telemecanique XS7C40DA210 is a high-performance inductive proximity sensor designed for non-contact detection of metal objects. Its limit switch style body provides robust and easy mounting, making it a reliable choice for various industrial automation applications, including positioning, counting, and presence detection.

Specifications

• Model: XS7C40DA210
• Sensing Technology: Inductive
• Nominal Sensing Distance (Sn): 15 mm
• Body Style: Fixed, Limit Switch Type (Form C 40x40x117)
• Rated Operational Voltage (Ue): 12 to 48V DC
• Rated Operational Current (Ie): 1.5 to 100mA
• Output Function: Normally Open (NO)
• Wiring: 2-wire DC
• Protection Rating: IP67
• Enclosure Type: NEMA 12 and 4X
• Connection: Screw-clamp terminals

Label Info

• Brand: Telemecanique
• Part Number: XS7C40DA210
• Certifications: CE, UL Listed, CSA, CCC

Application

This sensor is ideal for use in packaging machinery, assembly lines, material handling systems, and other automated equipment where reliable metal detection is critical.

Country of Origin

Made in Indonesia.

CO2 Impact

By purchasing this pre-owned sensor, you help avoid the emission of approximately 10.0 kg of CO2, which is equivalent to the savings from not driving a car for 50 kilometers.

Availability

This product is an obsolete model but is available from our stock. It is a perfect replacement for existing installations to avoid costly system retrofits. Order now from PLC2Day for expert support and fast delivery.

FAQ

A 2-wire sensor is connected in series with the load, similar to a mechanical switch. It has a small leakage current when off and a voltage drop when on. A 3-wire sensor has separate connections for positive, negative, and the signal output, providing a cleaner signal with no leakage current, which is often preferred for high-speed or sensitive PLC inputs.

The XS7C40DA210 has a nominal sensing distance of 15mm, which is characteristic of a non-flush (unshielded) sensor. This means it has a wider sensing field and must not be mounted flush within a metal surface to achieve its specified range.

Yes, its operating current range of 1.5 to 100mA is compatible with most standard PLC DC inputs. However, it is crucial to verify your specific PLC input module's specifications, particularly the minimum current required to register a 'high' state.
