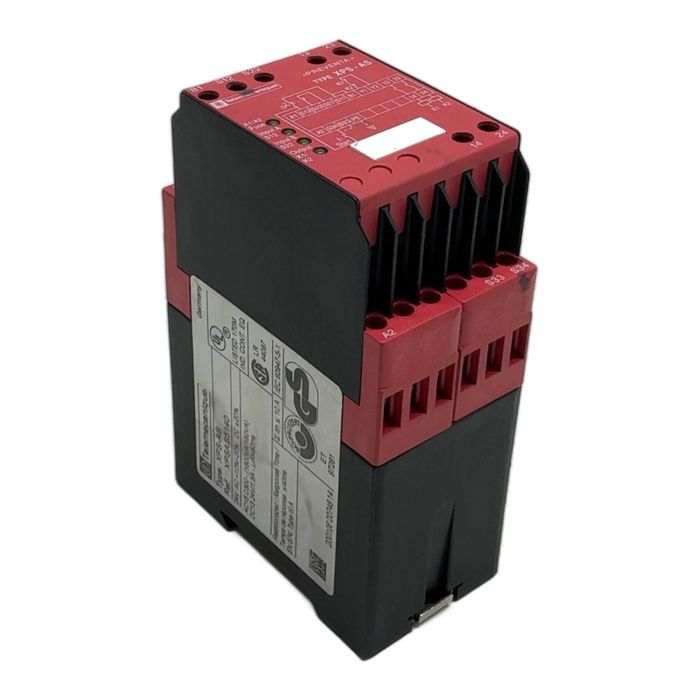

Telemecanique XPSAS5140 Safety Relay for Two-Hand Control

Description

The Telemecanique XPSAS5140 is a dedicated safety module from the Preventa series, designed for the monitoring of two-hand control stations. This module ensures that a machine operator must use both hands simultaneously to initiate a hazardous operation, significantly reducing the risk of injury. It operates on a versatile 24V AC/DC supply and meets the stringent requirements of EN 574 Type III A. As an obsolete component, it is an essential spare part for the maintenance and repair of existing machinery.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Type: XPS-AS
• Part Number: XPSAS5140
• Supply Voltage: 24V AC (+10%/-20%), 24V DC (+/-20%)
• Application: Two-hand control station monitoring
• Safety Outputs: 3x NO (Normally Open)
• Auxiliary Output: 1x NC (Normally Closed)
• Response Time: <= 40ms
• Thermal Current (Ith): <= 10A

Label Info

• AC15 C300 (1800VA/180VA)
• DC13 24V/1.5A - L/R=50ms
• Standard: EN 574 Type III A, IEC 60947-5-1
• Certifications: UL, SP, GS, LR

Application

This safety relay is specifically used in industrial automation to monitor two-hand control buttons on machinery like presses, stamping machines, and other equipment where operator safety is paramount during machine cycles.

Country of Origin

This product is made in Germany.

CO2 Impact

By purchasing this pre-owned module instead of a new one, you help avoid the emission of approximately 10 kg of CO2. This saving is a result of eliminating the need for new raw material extraction and manufacturing processes.

Availability

This product is an obsolete model but is available from our stock as a tested, pre-owned component. It is ideal for spare parts and maintaining existing installations without costly retrofits. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What is the primary application for the XPSAS5140?

Answer: This module is specifically designed for monitoring two-hand control stations as per safety standard EN 574 Type III A, ensuring an operator uses both hands to start a dangerous machine cycle.

Answer: Yes, the supply voltage specification of 24V AC +10%/-20% and DC +/-20% means it is compatible with both 24V AC and 24V DC power supplies, offering flexibility in control circuit design.

Answer: No, the XPSAS5140 is an obsolete model from the Telemecanique Preventa series. A modern equivalent from the Schneider Electric Harmony range, such as the XPSBCE3110C, should be considered for new designs.
