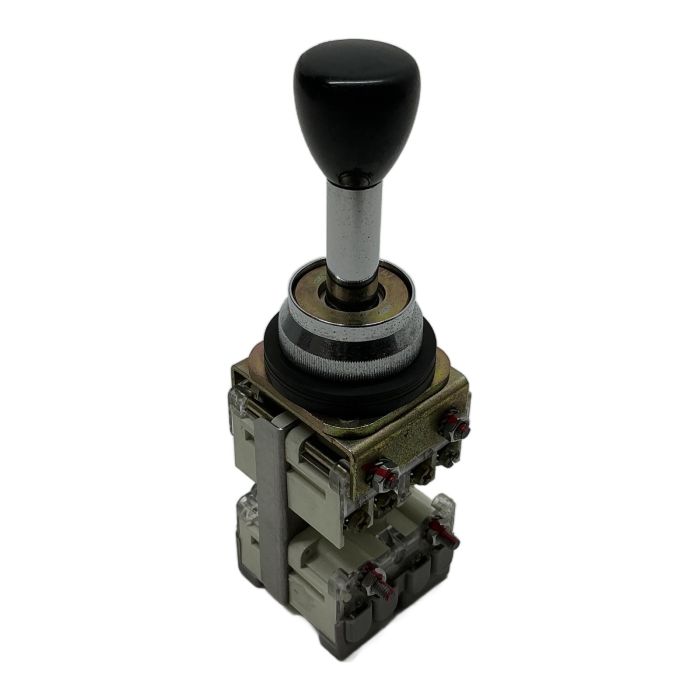

Telemecanique Joystick Controller XD2PA24

Description

A robust 4-direction joystick controller from the Telemecanique Harmony series. This spring-return controller is designed for intuitive and precise control of machinery in industrial environments. It features a durable metal construction suitable for 22mm panel mounting.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Type: XD2PA24
• Series: Harmony
• Number of Directions: 4
• Actuation: Spring return to center
• Mounting Diameter: 22 mm
• Contacts: 1 NO per direction
• Operator Profile: Black standard handle

Label Info

• Brand: Telemecanique
• Body Model: XD2-A...2
• Date Code: 0820

Application

Ideal for controlling cranes, hoists, material handling equipment, and other industrial machinery requiring multi-directional input.

Country of Origin

Made in France.

CO2 Impact

Choosing this pre-owned unit over a new one saves approximately 8.0 kg of CO2, equivalent to the emissions from driving a standard car for 40 kilometers.

Availability

Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this joystick controller latching or momentary (spring return)?

This is a spring return (momentary) joystick. It automatically returns to the central '0' position when released.

What is the IP rating for this joystick when mounted correctly?

The Harmony XB4 series joysticks, including the XD2PA24, typically have an IP66 rating on the front face when installed correctly in a compatible enclosure, making them resistant to dust and powerful water jets.

Can the contact blocks be changed or added to this unit?

Yes, the Harmony series is modular. You can typically add, remove, or replace the contact blocks on the body to configure the switching logic (e.g., changing from NO to NC contacts) as needed for your application.
