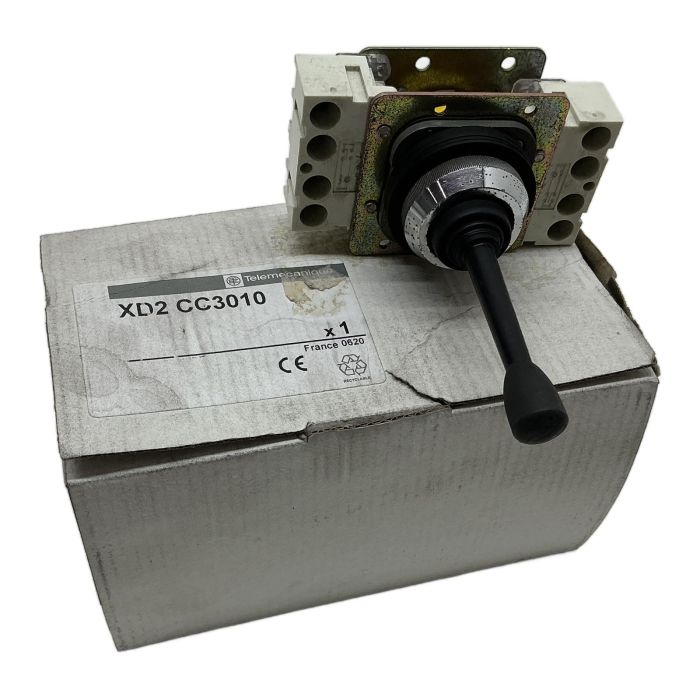

Telemecanique XD2 CC3010 2-Direction Joystick Controller

Description

The Telemecanique XD2 CC3010 is a high-quality joystick controller designed for precise control in industrial environments. Part of the robust Harmony XD2 series, this controller offers two-directional operation with a spring-return mechanism, ensuring the lever returns to the neutral center position when released. It is ideal for applications requiring intuitive control, such as cranes, hoists, and material handling equipment. This unit is built for reliability and longevity, fitting a standard 22mm panel cutout for easy installation.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: XD2 CC3010
• Product Type: Joystick Controller
• Number of Directions: 2
• Action: Spring return to 0 position
• Mounting Diameter: 22 mm
• Contact Blocks: 1 NO (Normally Open) per direction

Label Info

• Brand: Telemecanique
• Part Number: XD2 CC3010

Application

This joystick controller is suitable for a wide range of industrial control panels, providing manual control for machinery movements, conveyor systems, and automation processes where two-axis control is needed.

Country of Origin

This product is made in France.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and helping to avoid 10.0 kg of CO2 emissions. This saving is comparable to the emissions from driving a car for 50 kilometers.

Availability

This item is a discontinued, new-old-stock product. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the required mounting hole diameter for the XD2 CC3010?

This controller is designed for a standard 22 mm panel cutout.

Is this a latching or momentary (spring-return) joystick?

The XD2 CC3010 features a spring-return (momentary) mechanism, meaning the lever will automatically return to the center 'off' position when released.

What are the typical electrical contact ratings for this controller?

Controllers in the Harmony XD2 series typically have a conventional thermal current (Ith) of 10A and are often rated for A600/Q600 usage categories, allowing them to switch significant AC and DC loads. Always verify with the specific datasheet for your application's voltage and current requirements.
