Telemecanique XCKN2110P20 Limit Switch

Description

The Telemecanique XCKN2110P20 is a compact and reliable limit switch from the OsiSense XC series. It is designed for standard-duty applications in industrial environments, providing accurate position feedback for machinery and automated systems. Its thermoplastic body offers good resistance to mechanical stress and chemical agents, and the pre-fitted M20 cable gland simplifies installation.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: XCKN2110P20
• Series: OsiSense XC
• Actuator Type: Plunger
• Contact Configuration: 1 NO + 1 NC
• Contact Action: Snap Action (Zb type)
• Rated Operational Current (AC-15): 3 A at 240 V
• Conventional Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 500 V
• Ingress Protection: IP65
• Cable Entry: 1 entry for M20 x 1.5 cable gland

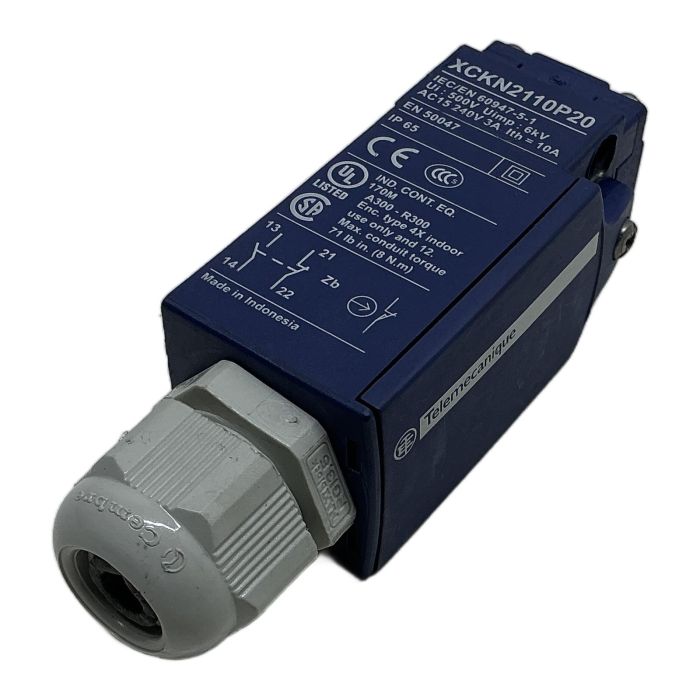

Label Info

• IEC/EN 60947-5-1
• AC15 240V 3A
• Ui 500V, Uimp 6kV, Ith 10A
• Certifications: CE, UL, CSA (SP), CCC

Application

This limit switch is ideal for a wide range of applications, including packaging machines, conveyors, material handling equipment, and assembly lines where the detection of a part's presence or position is critical for process control.

Country of Origin

Made in Indonesia.

CO2 Impact

Opting for a refurbished component like this one saves approximately 5.2 kg of CO2, which is comparable to the emissions saved by not driving a car for 26 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What is the difference between snap action and slow-break contacts in a limit switch?

Answer: Snap-action contacts (like in the XCKN2110P20) change state rapidly, regardless of the actuator speed, providing a decisive switching action. Slow-break contacts open and close at a speed proportional to the actuator's movement, which is suitable for some applications but can cause arcing with slow actuation.

Answer: Yes, as seen in the product photos, this XCKN2110P20 comes pre-fitted with a grey M20 plastic cable gland, ready for wiring installation.

Answer: The 'Zb' symbol indicates snap-action contacts with one normally open (NO) and one normally closed (NC) circuit. Importantly, it signifies that the contacts are electrically separated, meaning they can be used in two different control circuits.
