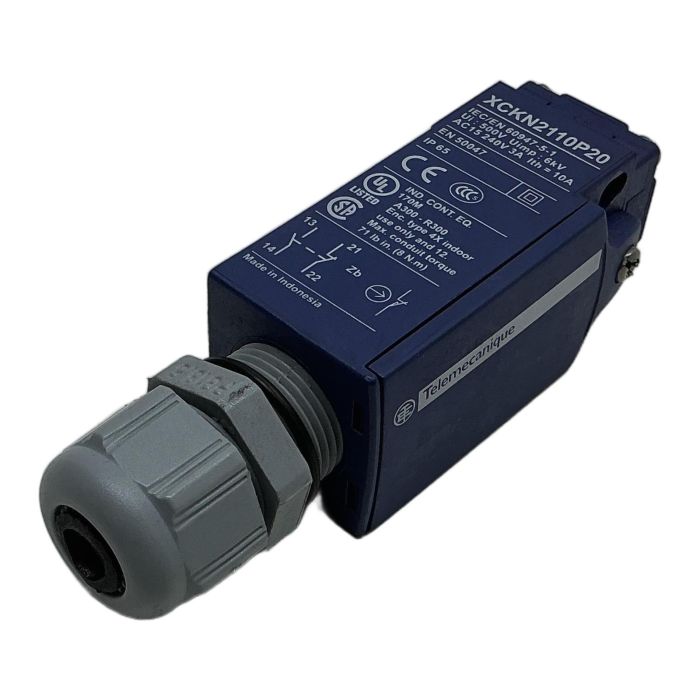

Telemecanique XCKN2110P20 Limit Switch with Roller Plunger

Description

The XCKN2110P20 is a compact and versatile limit switch from the Telemecanique OsiSense XC range, designed for standard industrial applications. It features a durable thermoplastic body and a roller plunger actuator, making it suitable for detecting object presence and position in automated systems. Its snap-action contacts ensure a quick and reliable switching response.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: XCKN2110P20
• Actuator Type: Roller plunger
• Contact Configuration: 1 NO + 1 NC
• Contact Action: Snap action (Zb)
• Housing Material: Plastic
• Rated Operational Current (AC-15): 3A at 240V
• Conventional Thermal Current (Ith): 10A
• Rated Insulation Voltage (Ui): 500V
• Protection Rating: IP65
• Cable Entry: M20 x 1.5 (Supplied with a PG13.5 gland)

Label Info

• Standard: IEC/EN 60947-5-1, EN 50047
• Certifications: CE, UL, CSA

Application

Ideal for use in packaging machinery, material handling equipment, assembly lines, and other industrial automation tasks where reliable position sensing is required.

Country of Origin

Made in Indonesia.

CO2 Impact

Choosing this pre-owned component over a new one avoids the emission of approximately 5 kg of CO2, which is comparable to the emissions from driving a standard car for 25 kilometers.

Availability

In stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Snap-action contacts change state rapidly, regardless of the actuator's speed, providing a decisive switching point. Slow-break contacts, on the other hand, open or close at a speed proportional to the actuator's movement, which is suitable for certain control applications but less ideal for high-vibration environments.

Yes, on many models in the OsiSense XC range, the head can be reoriented in 90-degree increments to suit the specific mounting and actuation requirements of the application. Please consult the product datasheet to confirm for this specific model.

The 'Zb' designation on the label refers to the type of contact block. It signifies a single-pole, snap-action contact with one normally open (NO) and one normally closed (NC) circuit. The arrow symbol next to it indicates that the contacts change state simultaneously.
