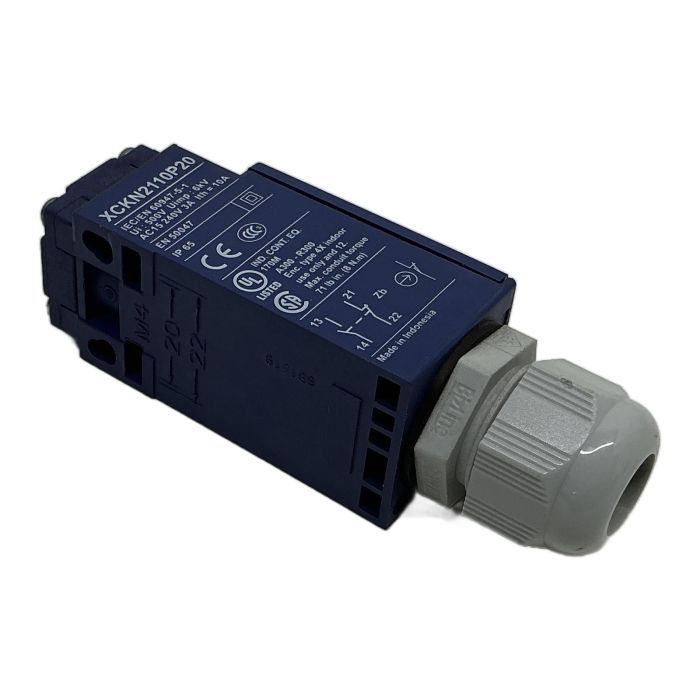

Telemecanique OsiSense XC Limit Switch

Description

The Telemecanique XCKN2110P20 is a compact limit switch from the OsiSense XC series, designed for reliable position detection in automated machinery and systems. It features a robust plastic enclosure and a metal plunger for direct actuation. This switch provides precise and repeatable performance in various industrial applications.

Specifications

• Model: XCKN2110P20
• Series: OsiSense XC
• Body Material: Plastic
• Head Type: Plunger
• Contact Configuration: 1 NO + 1 NC
• Contact Operation: Snap action
• Rated Operational Current (AC-15): 3 A at 240 V AC
• Conventional Enclosed Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 500 V
• Protection Rating: IP65, Type 4X
• Cable Entry: M20 x 1.5

Label Info

• Manufacturer: Telemecanique
• Part Number: XCKN2110P20
• Standard: IEC/EN 60947-5-1

Application

Ideal for use in packaging, material handling, assembly lines, and other industrial automation tasks where a compact and reliable position sensor is required.

Country of Origin

Made in Indonesia.

CO2 Impact

Choosing this refurbished item saves approximately 2.8 kg of CO2 compared to a new one, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the "Zb" contact type mean on the XCKN2110P20?

The "Zb" designation refers to snap-action contacts with a positive opening NC contact. This means the contacts change state rapidly and independently of the actuator speed, ensuring reliable switching, and the normally closed contact is guaranteed to open when the actuator is triggered.

Is the plastic body of this limit switch suitable for harsh industrial environments?

Yes, the switch has an IP65 rating, which means it is completely protected against dust ingress and can withstand low-pressure water jets from any direction. The plastic body is also resistant to many industrial oils and coolants, making it durable for most standard factory environments.

What is the maximum operating rate for this switch?

According to the manufacturer's datasheet, the maximum operating rate for the XCKN2110P20 is 3600 cycles per hour, ensuring it can keep up with high-speed applications while maintaining a long mechanical life.
