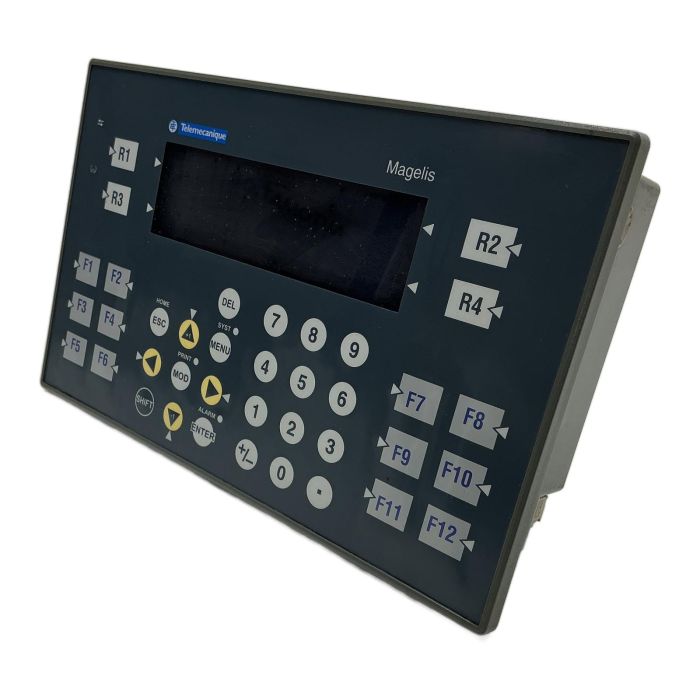

Telemecanique Magelis HMI Operator Panel

Description

The Telemecanique XBT PM027010 is a durable HMI (Human Machine Interface) from the Magelis series, designed for reliable interaction with PLCs and other automation equipment. It features a clear monochrome display and a comprehensive set of function keys and a numeric keypad, making it ideal for applications requiring straightforward data entry and system control. This panel is built to withstand industrial environments and provides a dependable interface for machine operators.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: XBT PM027010
• Version: V2.2
• Input Voltage: 24V DC
• Power Consumption: 15W
• Display: Monochrome LCD
• Operator Input: Numeric and Function Keypad
• Communication: Serial (DB-25 Port)

Label Info

• MODICON | SQUARE D | Telemecanique
• Type: XBT PM027010
• Power: 24V DC, 15W
• Version: V2.2
• Origin: France

Application

This HMI is perfectly suited for controlling and monitoring machinery in manufacturing, process control, and building automation. It's a common component in legacy systems that require a robust, non-touch interface.

Country of Origin

This product is manufactured in France.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid approximately 48 kg of CO2 emissions associated with the production of a new unit. This is a sustainable choice for your business and the environment.

Availability

This item is a refurbished, tested product. Stock is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

This HMI panel is programmed using Schneider Electric's Vijeo Designer Lite software. Ensure you have the correct version to support this legacy hardware.

The XBT PM027010 primarily uses serial communication protocols like Modbus RTU via its DB-25 port. While it was designed for older Modicon and Telemecanique PLCs, it can communicate with any modern PLC that supports Modbus RTU serial communication, though configuration may require specific drivers.

The backlight for the monochrome LCD on the XBT PM series is typically an integrated unit. It is not designed for easy field replacement and would require specialized electronic repair skills to service.
