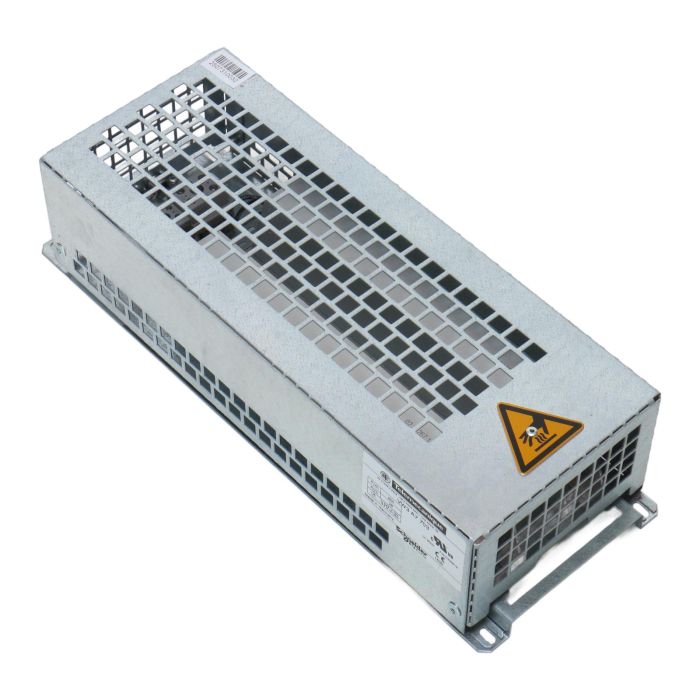

Telemecanique Braking Resistor VW3A7703

Product Description

Braking resistor designed for Altivar series variable speed drives. This resistor has an impedance of 28 Ohm and power rating of 200W, suitable for applications requiring effective braking control.

Product Specifications

Range of product: Altivar
Range compatibility: Altivar 61, Altivar 312, Altivar 32, Altivar 312 Solar, Altivar 31C
Product compatibility: ATV312HD11N4, ATV312HD11S6, ATV312HD15N4, ATV312HD15S6, and more
Ohmic value: 28 Ohm
Rated operational voltage: 24 V DC at 0.1 A, 250 V AC at 1 A
Manufacturer: Telemecanique
GTIN-13: 3389118065758

Product Label Info

Model Code / Product Markings: VW3A7703
Label Info: Telemecanique, 02 31226 2 8028 HE 2-H400 282 + 10% 200W TS
Made in Germany
Manufacturer: Schneider
CE Certified
File E226619
Weight: 13.5 lb.in/1.5Nm

Application

Ideal for use in industrial automation systems, motor control applications, and variable speed drive setups.

Country of Origin

This product is manufactured in Germany.

Method of Application

Installation should be done by qualified personnel following manufacturer guidelines. Ensure proper integration with the specific Altivar series drive.

Safety Instructions

Handle with care. Ensure appropriate grounding measures are in place during installation.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Telemecanique

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Telemecanique
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Telemecanique Braking Resistor VW3A7703 used for?

This part is typically used in industrial automation systems, providing precise braking control for variable speed drives.

What are the key advantages of Telemecanique Braking Resistor VW3A7703?

It offers reliable braking performance, ensuring smooth operation of motor control systems.

Is VW3A7703 compatible with my system?

If you're using Altivar series control systems, especially the models listed in the compatibility section, then this resistor will be compatible. Contact us to verify.

Alternatives to VW3A7703

If you're looking for a similar braking resistor, consider exploring other Telemecanique models or compatible brands in the Altivar range.

Can I sell my surplus stock to PLC2DAY?

Yes, absolutely. PLC2DAY accepts surplus stock and offers tailored solutions for surplus recovery and inventory clearance. Contact us for more information.
