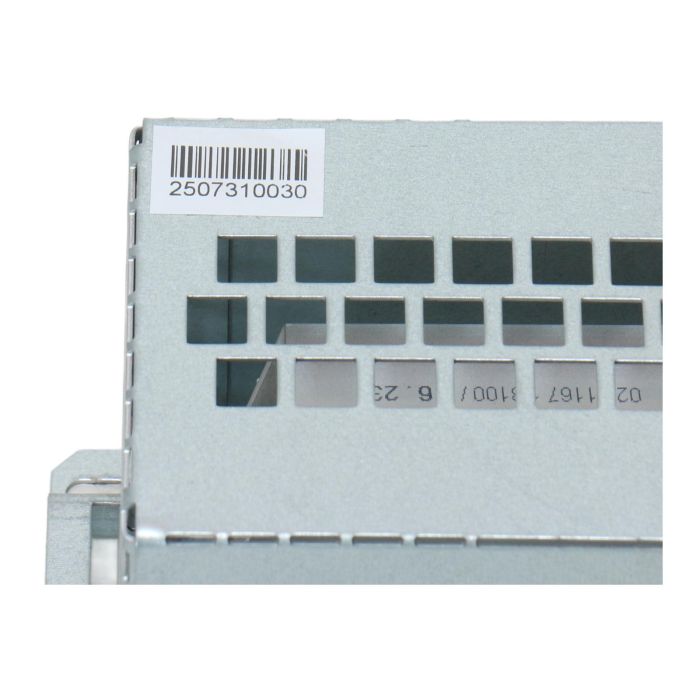

Telemecanique Braking Resistor VW3A7701

Product Description

The Telemecanique VW3A7701 braking resistor is designed for use with Altivar series variable speed drives to ensure efficient electrical power transmission.

Product Specifications

Range of Product: Altivar
Range Compatibility: Altivar 312, Altivar 61, Altivar 312 Solar, Altivar 32, Altivar 31C
Product compatibility: ATV31C018M2, ATV31C037M2, ATV31C037N4, and more
Power: 50W
Resistance: 100 Ohm
IP Rating: IP20
Manufacturer: Telemecanique
SKU: 2507310030
GTIN-13: 3389118065734

Product Label Info

Model Code / Product Markings: VW3A7701
Telemecanique, 02 31116 2 8100 HE 1-H200 1000 + 10% 50W TS, VW3 A7 701, P(W), 50, R(Q), 100, C, US, Un 600V, File E226619, WB 14 75°C, 13.3 lb.in/1.5Nm, Made in Germany, Schneider Electric, CE

Application

This braking resistor is ideal for applications requiring precise control of electrical power transmission in industrial automation settings.

Country of Origin

This product is manufactured in Germany.

Method of Application

Install the braking resistor in conjunction with Altivar series drives for optimal performance in speed control applications.

Safety Instructions

Ensure proper grounding and installation as per manufacturer guidelines for safe and efficient operation.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Telemecanique
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Telemecanique Braking Resistor VW3A7701 used for?

This part is typically used in industrial automation environments, such as motor control systems. It handles braking functions to ensure precise speed control.

What are the key advantages of the Telemecanique Braking Resistor VW3A7701?

It offers reliable braking performance, efficient power dissipation, and compatibility with Altivar series drives for seamless integration.

Is VW3A7701 compatible with my system?

If you're using Altivar series drives, especially the ATV31C models, then this braking resistor will likely be compatible. Contact us to verify.

Alternatives to VW3A7701

If you're looking for a similar braking resistor, consider other models within the Altivar range that offer comparable specifications and performance.

Can I sell my surplus stock to PLC2DAY?

Yes, absolutely. At PLC2DAY, we welcome surplus stock from industrial automation components. Contact us for more information on surplus recovery and resale opportunities.

Need Help?

Call us at +31(0)165 20 11 80 or get in touch online.
