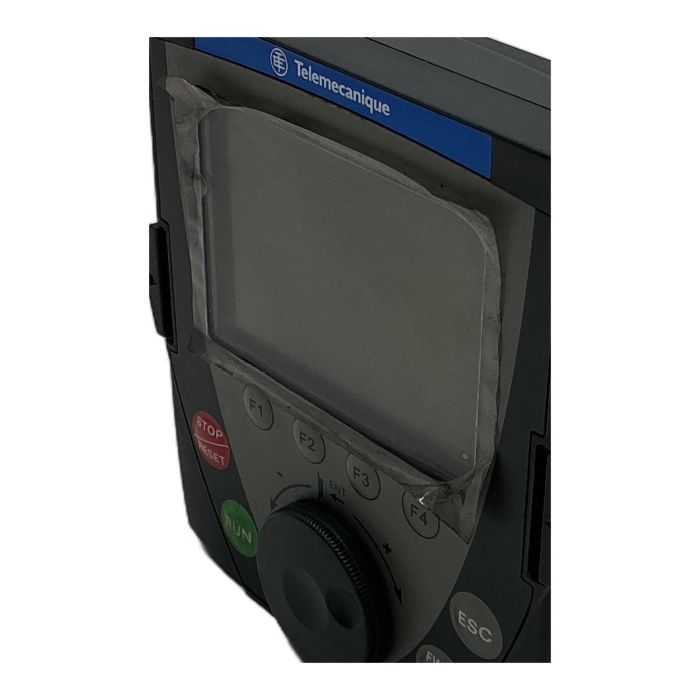

Telemecanique Remote Graphic Display Terminal VW3A1101

Description

The Telemecanique VW3A1101 is a robust and user-friendly remote graphic display terminal designed for the Schneider Electric Altivar series of variable speed drives. This HMI provides full access to drive parameters for configuration, monitoring, and diagnostics. Its clear display, intuitive navigation wheel, and function keys simplify the commissioning and maintenance process, making it an essential tool for any application using compatible Altivar drives.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Part Number: VW3A1101
• Product Type: Remote Graphic Display Terminal
• Compatibility: Altivar 61, Altivar 71, Altivar 312, Altivar 212, and other series
• Connection Interface: RJ45
• Display: Graphic LCD with backlight
• Protection Rating (Front Face): IP54 / IP65

Label Info

• Model: VW3A1101
• Firmware Version (example from unit): V1.1IE14

Application

This display terminal is widely used in industrial automation for setting up and controlling VFDs in applications such as HVAC, pumping, material handling, and industrial machinery. It allows for local control and easy replication of settings across multiple drives.

Country of Origin

This product is manufactured in Indonesia.

CO2 Impact

Opting for a refurbished component like this VW3A1101 saves an estimated 8.0 kg of CO2 compared to a new one. This saving is equivalent to the energy used to charge a smartphone 960 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is the VW3A1101 compatible with the newer Altivar Process (ATV6xx/ATV9xx) drives?

No, the VW3A1101 is not natively compatible with the Altivar Process drive series. For these drives, you should use the VW3A1111 Advanced graphic keypad or other compatible HMI options.

A standard shielded RJ45 male/male cable is required. Schneider Electric offers specific cables for this purpose (e.g., VW3A8111), but a standard Ethernet patch cable can also work for short distances, though shielded is recommended for industrial environments.

Yes, one of the key features of the VW3A1101 is its ability to store up to four complete drive configurations. This allows you to easily copy a configuration from one drive and upload it to another identical drive, which is extremely useful for commissioning multiple machines.
