Telemecanique FIPWAY Junction Box 40-Series TSXLES64

Description

The TSXLES64 is a local derivation junction box manufactured by Telemecanique for their legacy TSX Series 7 PLC systems. This component is specifically designed for the FIPWAY fieldbus network, allowing for reliable branching and connections to various devices. As an obsolete part, it is crucial for the maintenance, repair, and expansion of existing industrial automation systems that rely on the robust TSX platform. This unit is New Old Stock (NOS), ensuring original manufacturer quality for your critical applications.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: TSXLES64
• Product Type: Local Derivation Junction Box
• Compatible Series: TSX 47 / TSX 67 / TSX 87 (40-Series)
• Network: FIPWAY
• Connectors: 1x 25-pin D-Sub (female), 2x Cable Gland Ports

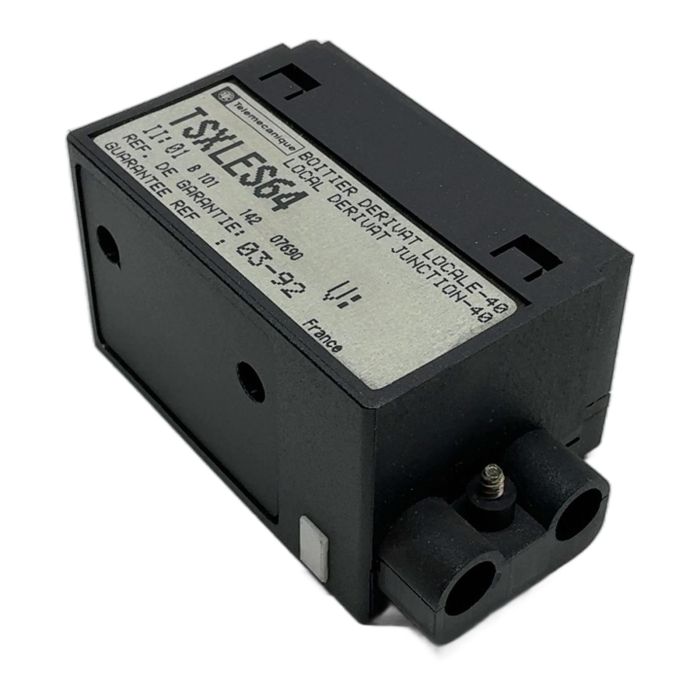

Label Info

• Model: TSXLES64
• Description: BOITIER DERIVAT LOCALE-40 / LOCAL DERIVAT JUNCTION-40
• Ref. de Garantie: 03-92

Application

This junction box is used in industrial control systems to create taps or drops in a FIPWAY communication network. It's commonly found in manufacturing, process control, and automation environments from the 1990s that utilize the Telemecanique TSX Series 7 PLCs.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned junction box instead of a new alternative prevents the emission of approximately 8.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This product is an obsolete legacy component and is available as a tested, reliable spare part. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the FIPWAY protocol?

Answer

FIPWAY was a proprietary fieldbus protocol developed by Telemecanique in the 1980s and 90s for their PLC systems, primarily the TSX series. It was a predecessor to more standardized protocols like Profibus and modern Ethernet-based networks.

Question?
Is this junction box compatible with modern Schneider Electric Modicon PLCs?

Answer

No, the TSXLES64 is designed specifically for the FIPWAY protocol and the physical connections of the TSX 7 series. It is not compatible with modern Modicon systems which use protocols like Modbus TCP/IP, EtherNet/IP, or AS-i.

Question?
What type of cable is typically used with the two circular ports on this device?

Answer

The two circular ports are cable glands designed for the FIPWAY network trunk cable. They provide a secure entry and exit point for the main bus cable, allowing the box to act as a 'T-tap' in the network line.
