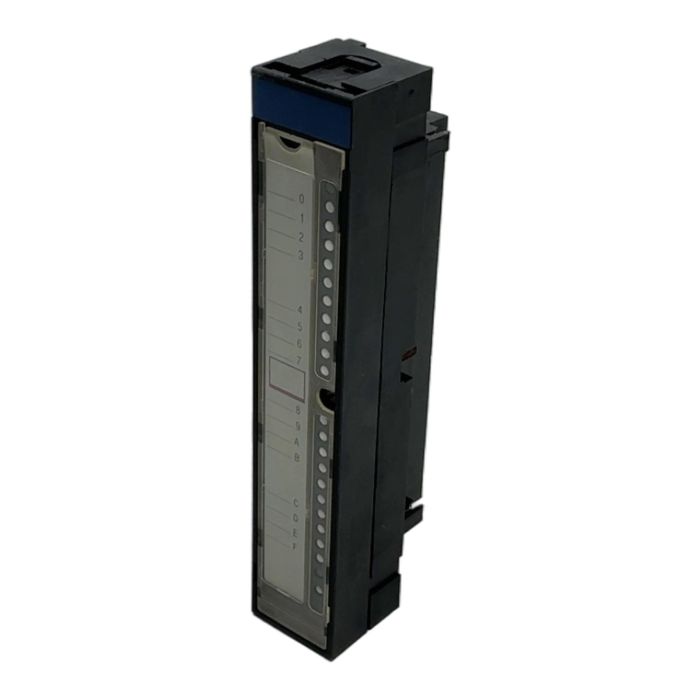

Telemecanique 24-Point Terminal Block for TSX Series 7

Description

The Telemecanique TSX BLK 1 is a 24-point terminal block designed for reliable field wiring connections to the Telemecanique TSX Series 7 PLC family. This new-old-stock component provides a direct and secure interface for I/O signals, ensuring system integrity and simplifying maintenance. It is an essential spare part for any facility operating with legacy TSX automation equipment.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: TSX BLK 1
• Product Type: PLC I/O Terminal Block
• Number of Terminals: 24
• Connection Method: Screw terminals
• Compatibility: Designed for Telemecanique TSX Series 7 PLC modules

Label Info

• Bornier 24 bornes indep.
• 24 Terminal block indep.
• TSX BLK 1
• II: 01 A

Application

This terminal block is used in industrial control panels for connecting sensors, actuators, and other field devices to specific digital or analog I/O modules of the TSX 27, TSX 47, and other Series 7 PLCs.

Country of Origin

Made in France.

CO2 Impact

Opting for this reused component prevents approximately 6 kg of CO2 emissions, which is comparable to the savings from charging a smartphone 720 times.

Availability

This is an obsolete item, available as new-old-stock. Limited quantities are available. Order now from PLC2Day for expert support and fast delivery.

FAQ

This terminal block is specifically designed for the Telemecanique TSX Series 7 PLC family, including models like the TSX 27, TSX 47, and TSX 67. It is not compatible with newer Modicon series without adapters.

The terminals are designed for standard control wiring, typically accepting wire sizes from 0.2 to 2.5 mm squared (approximately AWG 24 to 14), which is common for PLC I/O connections.

The TSX BLK 1 is a single-piece unit that connects directly to the front of a compatible TSX Series 7 I/O module. No additional base or mounting hardware is required.
