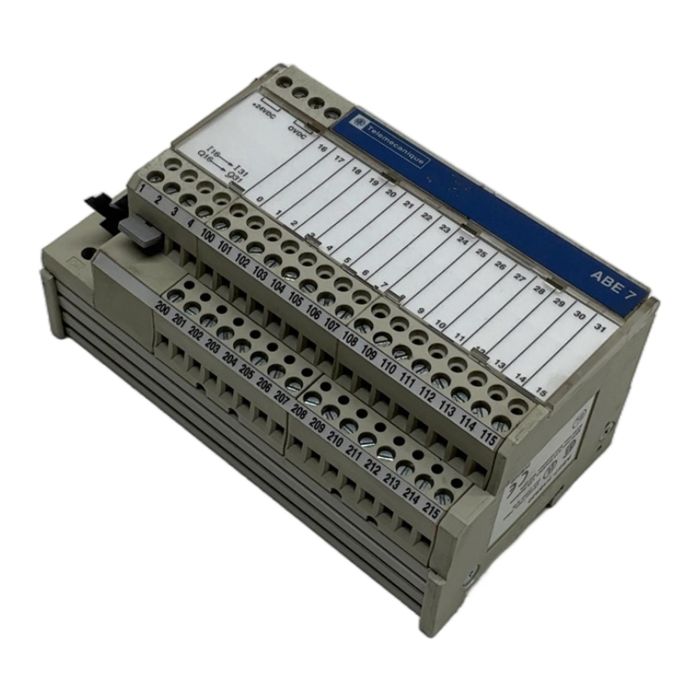

Telemecanique ABE7-H16R20 16-Channel Relay Output Module

Description

The ABE7-H16R20 is a Telefast 2 connection sub-base for 16-channel PLC output modules, designed for the Modicon automation platform. This module simplifies the connection between your controller and field devices by using a single pre-wired cable on the PLC side and clearly labeled screw terminals on the field side. It features integrated relays to switch higher current loads, protecting the PLC's output circuitry.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: ABE7-H16R20
• Product Range: Modicon ABE7
• Product Type: Sub-base with output relays
• Number of Channels: 16
• Control Circuit Voltage: 24V DC
• PLC Connector: HE-10, 20-pin
• Field Connector: Screw-clamp terminals
• Mounting: 35mm DIN-rail

Label Info

• Model: ABE7-H16R20
• Listed: UL 170M, 70M2 IND. CONT. EQ.
• Rating 1: 30Vdc max, 0.1A max/chan, 1.6A max/com.
• Rating 2: 30Vdc max, 0.5A max/chan. W/D com.

Application

This module is ideal for use in industrial control panels to interface with Modicon M340 and other compatible PLCs. It is commonly used to control actuators such as contactors, solenoid valves, and indicator lights in manufacturing and process control applications.

Country of Origin

Made in France.

CO2 Impact

Choosing this reused ABE7-H16R20 module saves an estimated 10.0 kg of CO2 compared to manufacturing a new one. This is a sustainable choice for your automation needs.

Availability

This product is an obsolete item but is available from our stock as a reliable spare part. Order now from PLC2Day for expert support and fast delivery.

FAQ

This sub-base uses a 20-way HE-10 connector. You would typically use a pre-fabricated Telefast 2 cable, such as the Schneider Electric ABE7CPAxx series, to connect it to a compatible Modicon PLC I/O card.

The relays on the ABE7 series are typically soldered to the PCB and are not designed for easy field replacement. If a relay fails, the entire module usually needs to be replaced.

No, the ABE7-H16R20 is a standard relay interface module and is not certified for use in safety circuits. For safety applications, you must use dedicated safety relays or safety PLC I/O modules that meet the required safety integrity level (SIL).
