Telemecanique RXN 41612 BD Miniature Plug-in Relay

Description

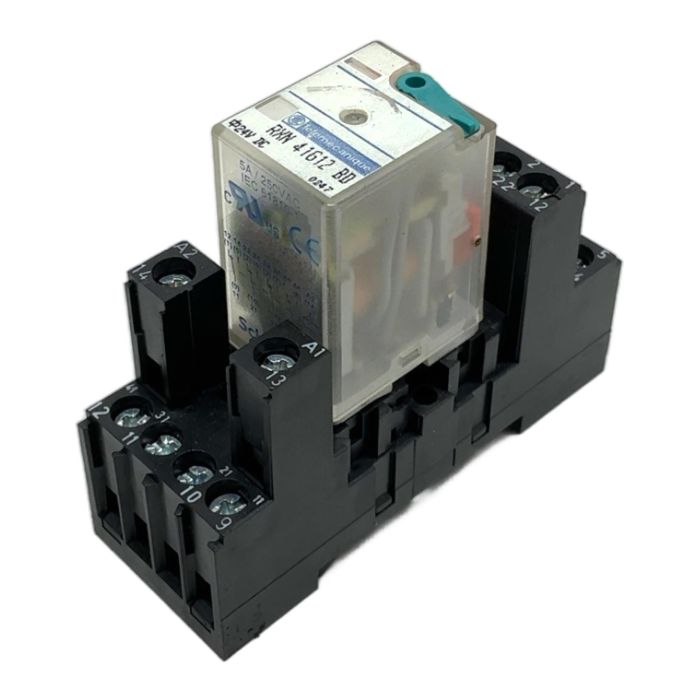

This is a Telemecanique RXN 41612 BD, a robust and reliable miniature plug-in relay designed for industrial control applications. This component, part of the Zelio Relay family now under Schneider Electric, offers a compact solution for switching control circuits. It comes complete with a screw-terminal socket for easy DIN rail mounting and wiring.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: RXN 41612 BD
• Coil Voltage: 24V DC
• Contact Configuration: 4PDT (4 Pole Double Throw) / 4 C/O (Changeover)
• Contact Rating: 6A at 250V AC
• Series: RXN
• Mounting: Plug-in with Socket (included)

Label Info

• Brand: Telemecanique
• Type: RXN 41612 BD
• Coil: 24V DC
• Date Code: 0247

Application

Ideal for use in industrial automation, control panels, HVAC systems, and other applications requiring reliable electrical switching of loads like contactors, solenoid valves, and indicator lights.

Country of Origin

Manufactured in France.

CO2 Impact

Choosing this used relay over a new one prevents the emission of approximately 3.0 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This is an obsolete item but is available from our stock. The modern equivalent is the Schneider Electric RXM4AB2BD. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the RXN 41612 BD is the predecessor to the RXM4AB2BD. They share the same pinout, coil voltage, and contact configuration, making them functionally interchangeable for most applications.

The contacts are rated for a conventional thermal current of 6 Amperes. It is important to check your load requirements to ensure you do not exceed this rating for optimal performance and lifespan.

No, this specific model, RXN 41612 BD, is designed exclusively for a 24V DC coil voltage. Applying AC voltage will damage the coil. For AC applications, you would need a different model.
