TELEMECANIQUE LX1FJ240 008204
In stock
Backorder allowed
Out of stock
Description / TELEMECANIQUE LX1FJ240 008204

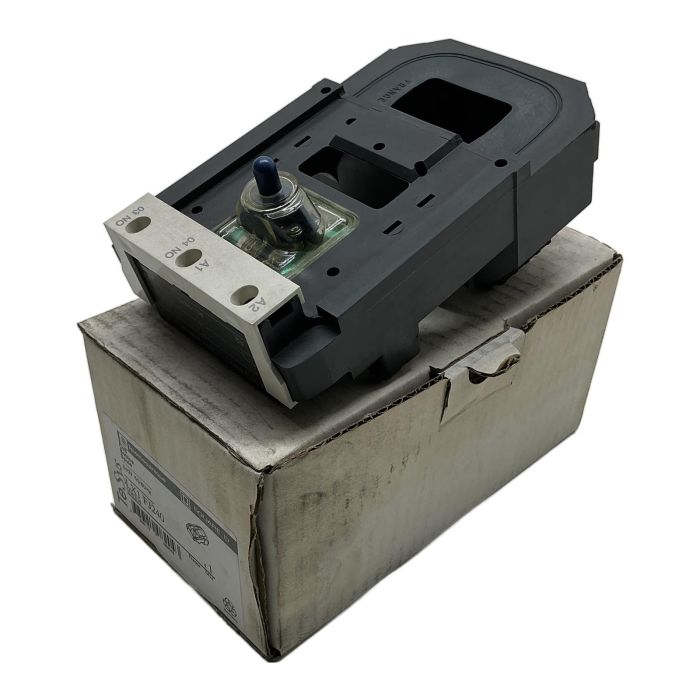

Telemecanique TeSys D Contactor Coil 240V AC - LX1FJ240
Description
The LX1FJ240 is a high-quality replacement coil manufactured by Telemecanique for their renowned TeSys D series of contactors. This coil is engineered for a control circuit voltage of 240V AC at 50/60 Hz. It provides the electromagnetic force necessary to operate the main contacts for switching motor loads and other electrical circuits. It is a crucial component for maintaining the reliability of your control panels and machinery.
Specifications
- Manufacturer: Telemecanique (Schneider Electric)
- Part Number: LX1FJ240
- Order Code: 008204
- Product Range: TeSys D
- Component Type: Contactor Coil
- Control Circuit Voltage: 240V AC
- Frequency: 50/60 Hz
- Compatibility: For contactors LC1D25, LC1D32, LC1D38
Label Info
- Brand: Telemecanique, Square D
- Model: LX1 FJ240
- Part Number: 008204
- EAN: 3389110082043
- Date Code: 0414
Application
This coil is specifically designed for integration into TeSys D contactors used in a variety of industrial applications, including motor starting, heating and lighting control, and power distribution systems where reliable switching is essential.
Country of Origin
Made in France.
CO2 Impact
By purchasing this pre-owned component, you are helping to avoid the production of a new one, which saves an estimated 8.0 kg of CO2. This is a smart choice for both your budget and the environment.
Availability
This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question?
How do I verify if this LX1FJ240 coil is compatible with my specific TeSys D contactor?
Answer
This coil is designed for TeSys D contactors with ratings from 25A to 38A, specifically models LC1D25, LC1D32, and LC1D38. Please check the model number on the side of your contactor body to confirm compatibility.
Question?
What are the signs that a contactor coil needs replacement?
Answer
Common signs of a failing coil include the contactor not pulling in (humming but not closing), chattering, or a complete failure to energize. An open circuit measurement across the A1 and A2 terminals with a multimeter also indicates a faulty coil.
Question?
Can I use a DC voltage source on this AC-rated coil?
Answer
No, this coil is specifically designed for 240V AC at 50/60 Hz. Applying DC voltage will cause it to overheat and fail quickly due to the lack of impedance that an AC frequency provides. Always match the coil voltage and type to your control circuit's supply.Last Update: Friday, March 13, 2026
PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
More Information
| Item Number | LX1FJ240 008204 |
|---|---|
| Brands | Telemecanique |
| HS Code | 85369010 |
| EAN | 3389110082043 |
| HS Description | Electrical Contactor Coil |
| Manufacturer | Telemecanique |
| Product Condition | Factory New |
| Packing Condition | Original Packing Packing |
