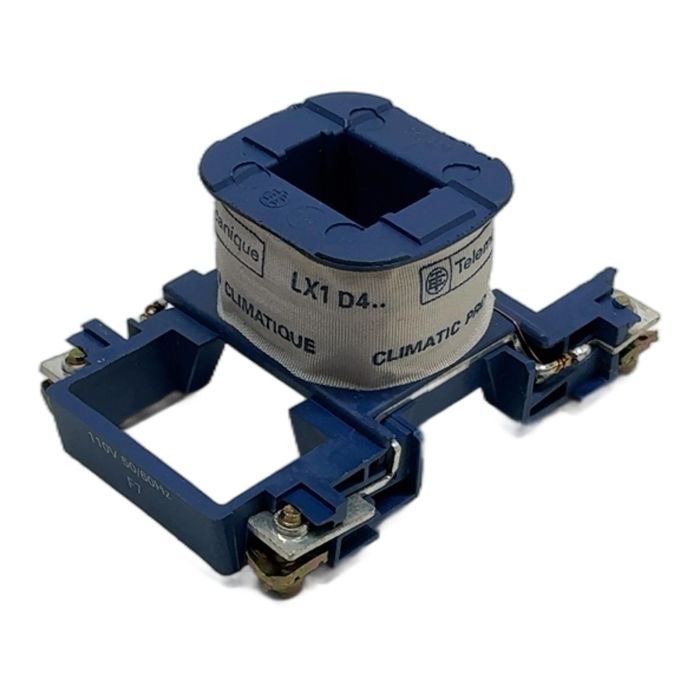

Telemecanique LX1 D4F7 Coil for D-Line Contactors

Description

The Telemecanique LX1 D4F7 is a high-quality replacement coil designed for D-line contactors, including models such as LC1D40, LC1D50, and LC1D65. Operating at 110V AC with a frequency of 50/60Hz, this coil ensures reliable and consistent performance for your control applications. Manufactured by Telemecanique, now a part of Schneider Electric, it represents a legacy of durability and robust engineering. This component is ideal for maintenance and repair of existing systems, extending the life of your valuable equipment. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Telemecanique
• Model: LX1 D4F7
• Part Number: 023511
• Product Type: Contactor Coil
• Control Voltage: 110V AC
• Frequency: 50/60 Hz
• Compatibility: D-Line Contactors (e.g., LC1D40-D65)

Label Info

• Brand: Telemecanique
• Model: LX1 D4F7
• Voltage: 110V 50/60Hz
• Markings: PROTECTION CLIMATIQUE / KLIMAFEST

Application

This coil is specifically used in industrial control panels for switching motors, heaters, and other electrical loads. It is a critical component for the proper functioning of Telemecanique D-series contactors found in manufacturing, automation, and HVAC systems.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned component over a new one prevents the emission of approximately 8.0 kg of CO2. This saving is comparable to the CO2 captured by a tree in a full year.

Availability

This item is a discontinued, New Old Stock (NOS) product. Availability is limited. The product comes in its original, opened packaging.

FAQ

The LX1 D4F7 is designed for the Telemecanique D-line contactors, specifically models such as the LC1D40, LC1D50, and LC1D65. Always verify your contactor's model number before installation.

While the coil is rated for 110V at 60Hz, using it at 120V is slightly above its nominal voltage rating. This can lead to increased heat and a potentially shorter lifespan. It's recommended to use a coil specifically rated for 120V for optimal performance and longevity.

For this specific coil series, the typical inrush power is around 140-160 VA, and the sealed (holding) consumption is approximately 13-15 VA at 60Hz. These values are crucial for power supply and control circuit design.
