Description / TELEMECANIQUE LX1D2F5 023483
Telemecanique Contactor Coil for TeSys D Series
Description

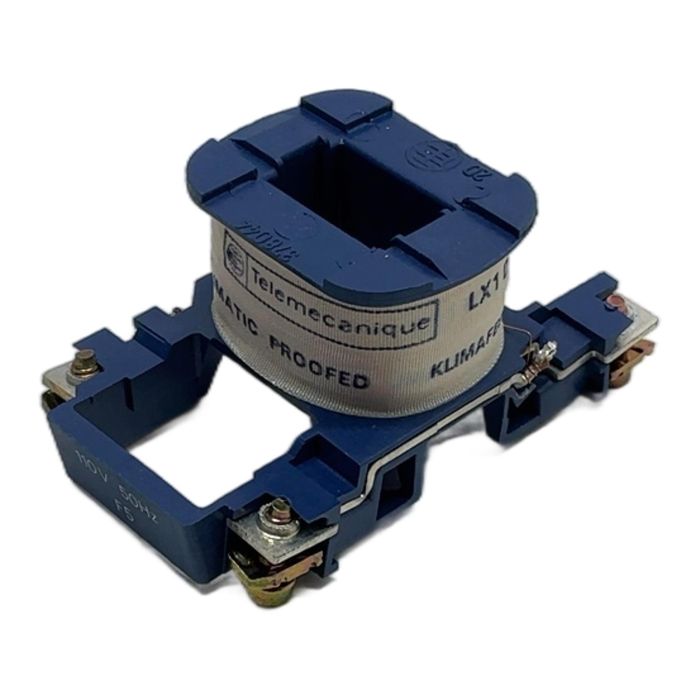

This is a Telemecanique LX1D2F5 contactor coil, a crucial component for the reliable operation of TeSys D series contactors. Designed for a control voltage of 110V AC at 50/60Hz, this coil ensures precise and consistent switching of electrical loads in industrial control panels. Manufactured by Telemecanique, now a part of Schneider Electric, it guarantees high quality and durability.
Specifications
- Manufacturer: Telemecanique (Schneider Electric)
- Model: LX1D2F5
- Part Number: 023483
- Product Type: Contactor Coil
- Control Circuit Voltage: 110V AC 50/60Hz
- Compatibility: For TeSys D contactors LC1D09 to LC1D38
Label Info
- Brand: Telemecanique
- Type: LX1D2F5
- Voltage: 110V 50Hz
Application
Ideal for replacing failed or aging coils in motor starters, control circuits, and other automation applications utilizing TeSys D contactors. Ensures continued reliability of critical machinery.
Country of Origin
Made in France.
CO2 Impact
By purchasing this pre-owned component, you are actively contributing to the circular economy. This choice avoids the production of a new item, saving an estimated 4.8 kg of CO2. This is equivalent to driving a car for 24 kilometers.
Availability
This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question? What TeSys D contactors is this LX1D2F5 coil compatible with?
Answer
This coil is designed for Schneider Electric TeSys D contactors with AC control circuits, specifically models ranging from LC1D09 to LC1D38.Question? The label says 50Hz, but my supply is 60Hz. Can I still use this coil?
Answer
Yes, according to the manufacturer's datasheet, the LX1D2F5 coil is rated for both 50Hz and 60Hz operation at 110V AC. It will function correctly on a 60Hz supply.Question? How can I verify if my existing coil is faulty and needs replacement?
Answer
A common way to test a coil is to measure its resistance with a multimeter. A healthy coil will have a specific resistance value (check the datasheet), while a faulty one may show an open circuit (infinite resistance) or a short circuit (zero resistance). Also, visible signs of burning or melting indicate a failure.PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
Last Update: Friday, March 13, 2026
More Information
| Item Number | LX1D2F5 023483 |
|---|---|
| Brands | Telemecanique |
| HS Code | 85045095 |
| EAN | 3389110234831 |
| HS Description | Coil for Contactor |
| Manufacturer | Telemecanique |
| Product Condition | Factory New |
| Packing Condition | Original Packing |
